B45197A3476K309, US $ .72-1.26, B45197A3476K309 DataSheet download, circuit diagram from SeekIC.com

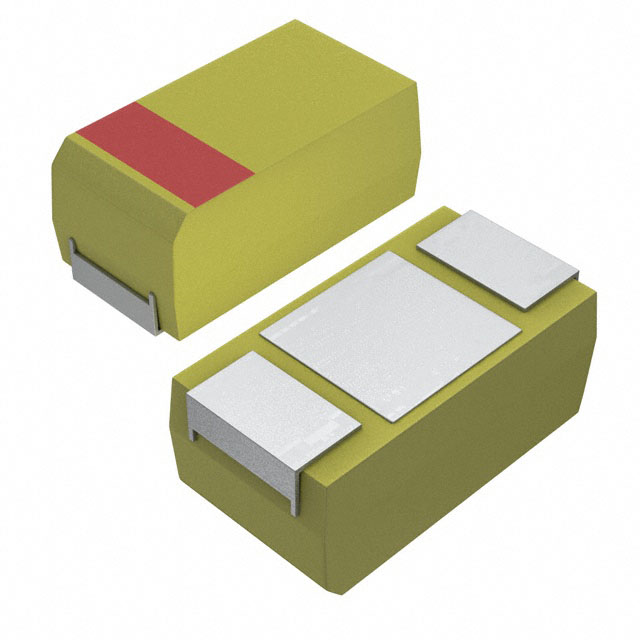

See larger image

SeekIC No. : 002992905 Detail

B45197A3476K309: CAP TANT 47UF 16V 10% 2312

B45197A3476K309 Data Sheet

US $ .72~1.26 / Piece | Get Latest Price

Part Number:: B45197A3476K309
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250

Unit Price
$1.26
$1.04
$.97
$.87
$.72

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

B451 evaluate
US $6651.56 - 6651.56 / Piece

General Purpose / Industrial Relays RELAY
B45190E1336M209 evaluate
US $.26 - .55 / Piece

Tantalum Capacitors - Solid SMD 6.3volts 33uF 20%
B45190E3106K209 evaluate
US $.26 - .79 / Piece

Tantalum Capacitors - Solid SMD 16volts 10uF 10%

Product Details

Quick Details

Series:	B45197A	Manufacturer:	Kemet
Maximum Limiting Voltage :	3.5 V	Capacitance:	47µF
Voltage - Rated:	16V	Tolerance:	±10%
ESR (Equivalent Series Resistance):	300 mOhm	Type:	Molded
Operating Temperature:	-55°C ~ 125°C	Mounting Type:	Surface Mount
Package / Case:	2312 (6032 Metric)	Size / Dimension:	0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max):	0.110" (2.80mm)	Lead Spacing:	-
Manufacturer Size Code:	C	Features:	General Purpose
Packaging:	Cut Tape (CT)Alternate Packaging

Description

Type: Molded
Operating Temperature: -55°C ~ 125°C
Mounting Type: Surface Mount
Lead Spacing: -
Features: General Purpose
Failure Rate: -
Packaging: Cut Tape (CT)Alternate Packaging
Voltage - Rated: 16V
Manufacturer: Kemet
Tolerance: ±10%
Capacitance: 47µF
Package / Case: 2312 (6032 Metric)
Size / Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max): 0.110" (2.80mm)
Manufacturer Size Code: C
Series: B45197A
ESR (Equivalent Series Resistance): 300 mOhm

Parameters:

Technical/Catalog Information	B45197A3476K309
Vendor	Kemet (VA)
Category	Capacitors
Capacitance	47F
Voltage - Rated	16V
Tolerance	±10%
Package / Case	6032-28 (EIA)
Packaging	Cut Tape (CT)
Features	General Purpose
Maximum Temperature	-55°C ~ 125°C
Lead Spacing	-
ESR (Equivalent Series Resistance)	300.0 mOhm
Lifetime @ Temp.	500000 Hrs @ 125°C
Mounting Type	Surface Mount
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	B45197A3476K309 B45197A3476K309 495 1543 1 ND 49515431ND 495-1543-1
