BA1442A

Features: 1) The S curve characteristic of the FM detector can be used for upper heterodyne ( N curve) operation.2) Audio high cut and low cut can be used to improve the AM fidelity.3) A reference voltage supply is provided to ensure good frequency stability in the shortwave bands.4) Good FM st...

product image

BA1442A Picture
See larger image
SeekIC No. : 004295394 Detail

BA1442A: Features: 1) The S curve characteristic of the FM detector can be used for upper heterodyne ( N curve) operation.2) Audio high cut and low cut can be used to improve the AM fidelity.3) A referenc...

BA1442A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA1442A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) The "S" curve characteristic of the FM detector can
  be used for upper heterodyne ("N" curve) operation.
2) Audio high cut and low cut can be used to improve the AM fidelity.
3) A reference voltage supply is provided to ensure
  good frequency stability in the shortwave bands.
4) Good FM stability.
5) Built-in damping resistor (3.3kW) for the quadrature coil.
6) The FM MPX uses a Laser Locked Loop, making
  adjustment of the VCO and addition of external
  components unnecessary.
7) Built-in forced monaural function for the MPX (VCO stops, LED off).
8) VCO of the MPX is switched off during AM operation.
9) The stereo indicator pin has a constant drive current,
  and a current limiting resistor is not required.
10) Few external components required.


Application

Radio cassette players

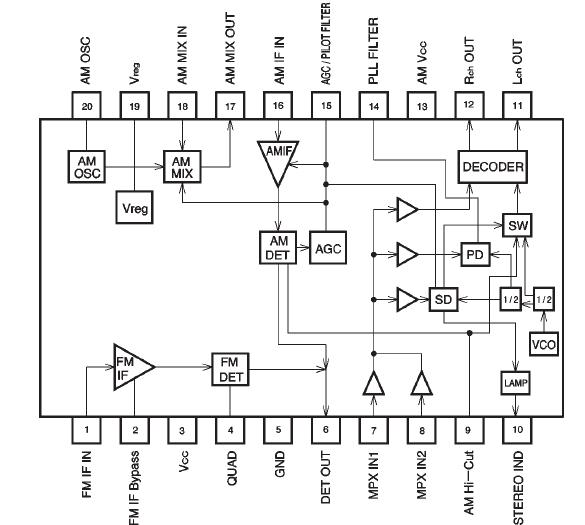

Pinout

Connection Diagram

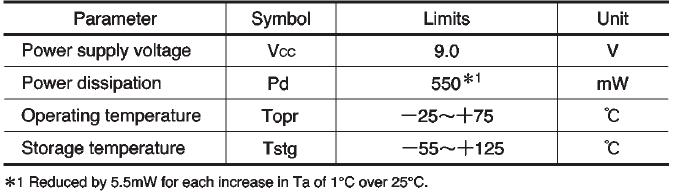

Specifications

Connection Diagram


Description

The BA1442A is an AM radio and FM IF stereo system IC developed for radio cassette players. The FM circuit is comprised of a differential IF amplifier, a double-balance type quadrature detector, and a PLL-type stereo MPX circuit. The AM circuit is comprised of a local oscillator, a double-balanced mixer, an IF amplifier, a detector, and an AGC circuit.
