Product Details

Description

Features:

1) Dual preamplifiers and power amplifiers on one chip.
2) Preamplifier suitable for auto-reverse use.
3) Transistor switch provided for metal-tape muting.
4) Power amplifier gain is optimized for noise reduction.
5) Radiation prevention pin provided.

Application

3V headphone stereos and 3V radio cassette players.

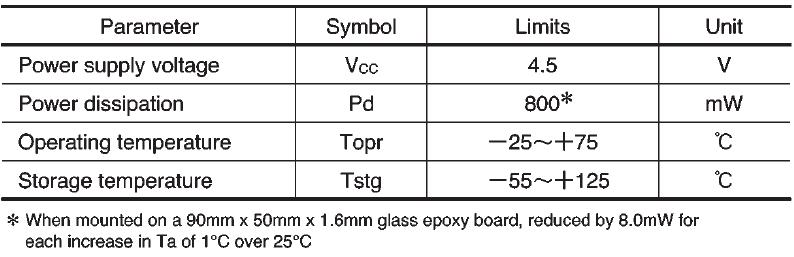

Specifications

Connection Diagram

Description

The BA3513AFS is a dual, pre / power amplifier designed for headphone stereo applications. It has all of the basic signal circuits required for tape players, and operates off a 3V supply.

The auto-reverse-compatible preamplifier block and fixed-gain power amplifier blocks are independent to facilitate noise reduction.

The preamplifier block can be direct-coupled, and the power amplifiers do not require bootstrap capacitors, and use a fixed-gain negative feedback circuit to reduce the number of external components required and allow compact and reliable set designs.
