Part Number: BA3641FV



MFG: ROHM

Package Cooled: TSSOP-20P

D/C: 03+

Description: The BA3641FV is an option IC developed for the purpose of adding a recording function to 1-chip playback system ICs (BA...


Urgent Purchase

BA3641FV General Description


The BA3641FV is an option IC developed for the purpose of adding a recording function to 1-chip playback system ICs (BA3612AKV, etc.) for headphone stereos.

BA3641FV Features

1) Two built-in microphone amplifier channels.
2) Microphone mute function (radio / microphone switching).
3) Two built-in recording amplifier channels (with ALC).
4) Two built-in monitor output amplifier channels (radio /microphone switching).
5) Built-in regulators for the erase head and bias OSC circuit.

BA3641FV Typical Application

Headphone stereos with recording function

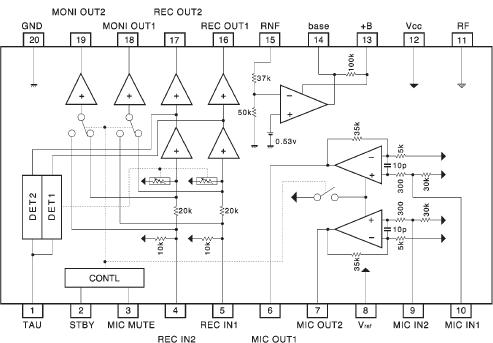

BA3641FV Connection Diagram

BA3641FV Connection Diagram
