BA3915B

Features: 1) ACC and BACKUP voltages are monitored, compared with the internally set values; one-shot pulses are output to MUTE, which synchronizes with the rising and falling of the STANDBY input.2) ACC voltage is monitored, compared with the internally set value, and the result is output to ACCB...

product image

BA3915B Picture
See larger image
SeekIC No. : 004295523 Detail

BA3915B: Features: 1) ACC and BACKUP voltages are monitored, compared with the internally set values; one-shot pulses are output to MUTE, which synchronizes with the rising and falling of the STANDBY input.2...

BA3915B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA3915B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) ACC and BACKUP voltages are monitored,
  compared with the internally set values; one-shot
  pulses are output to MUTE, which synchronizes with
  the rising and falling of the STANDBY input.
2) ACC voltage is monitored, compared with the internally
  set value, and the result is output to ACCB.
3) All outputs use a PNP transistor with low saturation voltage.
4) Output current limit circuit prevents damage to the IC
  due to short-circuiting.
5) Overvoltage protection circuit provides protection
  against surges from the ACC or BACKUP input.
6) Compact 16-pin POWER package allows large power dissipation.


Application

Car audio systems

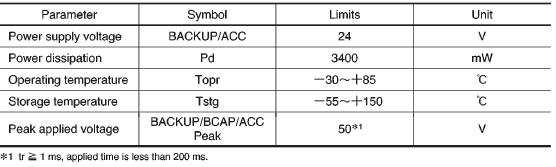

Specifications

Connection Diagram


Description

The BA3915B is an one-chip power supply IC for use in car audio systems. The IC has seven output systems : one 5V output (VDD), four 8.5V outputs (COM, FM, AM, AR), and two high-side switch outputs (ANT, AMP). The 5V outputs operate all the time if only the BCAD input is provided. The other outputs operate with BACKUP and ACC inputs, and their ON / OFF is controlled by the STANDBY and MODE inputs.
