BA3924

Features: 1) With outputs dedicated to a microcontroller, CD player, audio system, and motor drive, the IC is best suited for CD radio cassette players.2) Zero standby current (typ.).3) Output current limit circuit protects the IC against short-circuiting damage.4) Compact 12-pin package allows la...

product image

BA3924 Picture
See larger image
SeekIC No. : 004295525 Detail

BA3924: Features: 1) With outputs dedicated to a microcontroller, CD player, audio system, and motor drive, the IC is best suited for CD radio cassette players.2) Zero standby current (typ.).3) Output curre...

BA3924 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
BA3924
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) With outputs dedicated to a microcontroller, CD player,
  audio system, and motor drive, the IC is best suited for CD radio cassette players.
2) Zero standby current (typ.).
3) Output current limit circuit protects the IC against short-circuiting damage.
4) Compact 12-pin package allows large power dissipation.
5) Thermal shutdown circuit protects the IC against thermal damage.
6) VCCB output allows turning ON and OFF the power
  supply voltage by HIGH and LOW levels of the standby pin.


Application

CD radio cassette players

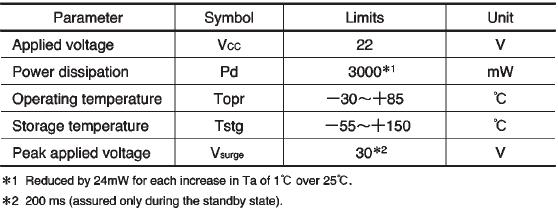

Specifications

Connection Diagram


Description

The BA3924 is a system reference power supply for use in CD radio cassette players. Outputs dedicated to a microprocessor (5.0V), CD player (7.5V), audio system (7.5V), and motor drive (9V) are built in. Also built in is a VCCB output that allows turning ON and OFF the supply voltage by HIGH and LOW levels of the standby pin.
