BA6110FS
-
Suppliers
DataSheet
General Description
BA6110FS Maximum Ratings
|
Parameter |
Symbol |
Limits |
Unit |
| Power supply voltage |
VCC |
34 |
V |
| Power dissipation |
Pd |
300*1 |
mW |
| Operating temperature |
Topr |
20 ~ + 70 |
°C |
| Storage temperature |
Tstg |
55 ~ + 125 |
°C |
| Maximum control current |
IC Max. |
500 |
µA |
BA6110FS Features
1) Low distortion rate. (built-in distortion reduction bias diode)
2) Low noise.
3) Low offset voltage. (VIO = 3m VMax).
4) Built-in output buffer.
5) Variable gm with superb linearity across three decade fields.
BA6110FS Typical Application
Electronic volume controls
Voltage-controlled impedances
Voltage-controlled amplifiers (VCA)
Voltage-controlled filters (VCF)
Voltage-controlled oscillators (VCO)
Multipliers
Sample holds
Schmitt triggers

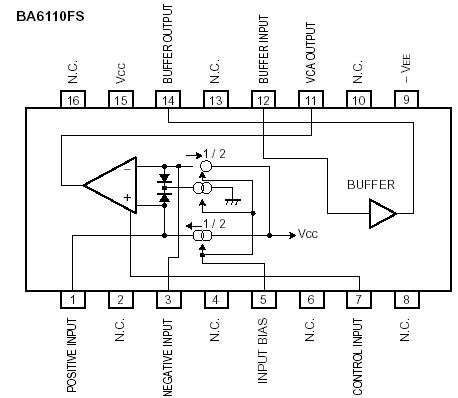

BA6110FS Connection Diagram
BA6110FS
PDF/DataSheet Download
- Datasheet: BA6110FS
- File Size: 121716 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
- ·BA604
- VISAY [Vishay Siliconix]
- Silicon Planar Diode
- 44489 KB
- ·BA60BC0FP
- ROHM [Rohm]
- 1.0A Low-Dropout Voltage Regulator with Shut down Switch
- 367568 KB
- ·BA60BC0T
- ROHM [Rohm]
- 1.0A Low-Dropout Voltage Regulator with Shut down Switch
- 368279 KB
- ·BA60BC0WFP
- ROHM [Rohm]
- 1.0A Low-Dropout Voltage Regulator with Shut down Switch
- 381262 KB
- ·BA60BC0WT
- ROHM [Rohm]
- 1.0A Low-Dropout Voltage Regulator with Shut down Switch
- 379718 KB
- ·BA60BC0WT-V5
- ROHM [Rohm]
- 1.0A Low-Dropout Voltage Regulator with Shut down Switch
- 381653 KB
- ·BA6104
- ROHM
- LED level meter driver, 5-point, linear scale
- 42455 KB
- ·BA6109
- ROHM [Rohm]
- Reversible motor driver
- 73791 KB
BA6110FS Relative Products
BA6104
The BA6104 is a monolithic driver IC for LED level meters applications.The IC has five comparators that operate in equally-spaced steps in response to the input voltage, and drive bar-display output LEDs.When the reference voltage generator is not set (pin 7...

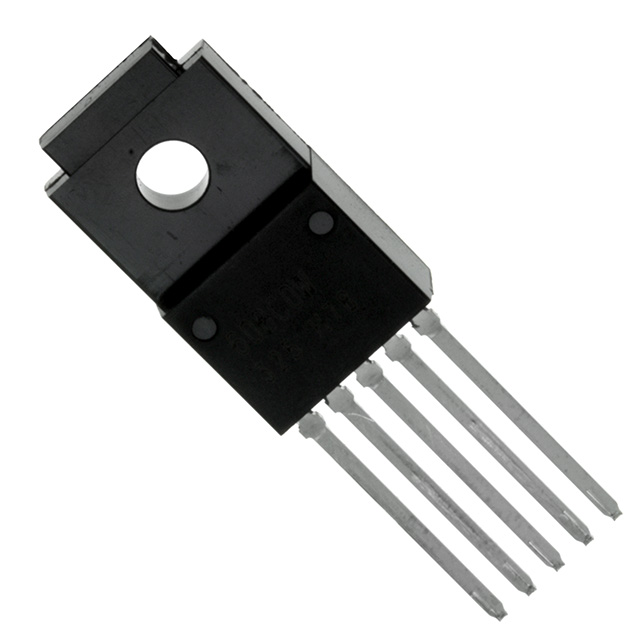

BA60BC0WT
IC REG LDO 1A 6V SHTDN TO220FP-5
BA60BC0WFP-E2
IC REG LDO 1A 6V SHUTDWN TO252-5

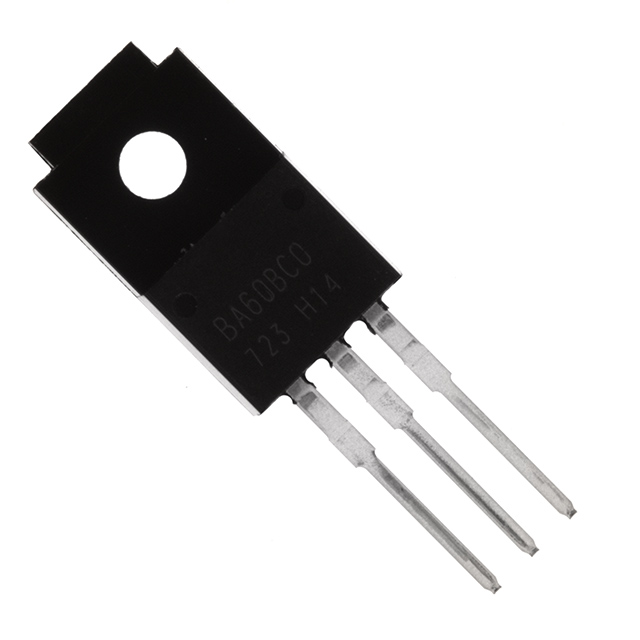

BA60BC0T
