General Description
BA612 General Description
The BA612 is a high-current driver IC, and contains an array of five Darlington transistors, each with input resistance. Input and output can be directed in the same direction using DIP Pin 14, with the layout optimized to facilitate mounting.
BA612 Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | VCC | 24 | V |
| Power dissipation | Pd | 550* | mW |
| Operating temperature | Topr | 25 ~+ 75 | °C |
| Storage temperature | Tstg | 55 ~+ 125 | °C |
| Collector current | IC | 450 | mA |
| Input pin voltage withstanding ( + ) | VIN + | 24 | V |
| Input pin voltage withstanding ( ) | VIN | 0.5 | V |
BA612 Features
5-circuit Darlington transistor array.
Large current (up to 400mA) can be driven.
Input and output pins are aligned in the same direction, for easy mounting.
High current transfer ratio.
Can be coupled with MOS ICs.
BA612 Typical Application
Hammer solenoid drivers
Relay drivers
LED drivers

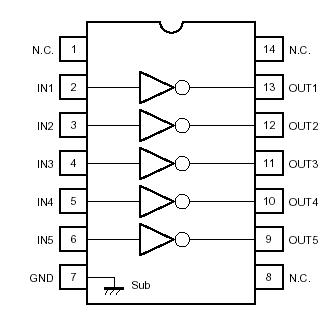

BA612 Connection Diagram
BA612
PDF/DataSheet Download
- Datasheet: BA612
- File Size: 54317 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
