Purchase BA6104, In-stock BA6104 From SeekIC.
MFG:ROHM Package Cooled:SIP
Part Number: BA6104
MFG: ROHM
Package Cooled: SIP
Description: The BA6104 is a monolithic driver IC for LED level meters applications.The IC has five compara...
- Table of contents:
BA6104
-
Suppliers
DataSheet
General Description
BA6104 General Description
The BA6104 is a monolithic driver IC for LED level meters applications.
The IC has five comparators that operate in equally-spaced steps in response to the input voltage, and drive bar-display output LEDs.
When the reference voltage generator is not set (pin 7 open), the comparators operate in 200mV (approx.) steps, so an input level of about 1V lights all of the LEDs. By connecting external resistors between pin 7 and GND. and pin 7 and VCC, this level can be adjusted over the range 0.5V to 3.0V.
BA6104 Maximum Ratings
| Parameter |
Symbol |
Limits |
Unit |
| Power supply voltage |
VCC |
18 |
V |
| Power dissipation |
Pd |
500(1) |
mW |
| Operating temperature |
Topr |
20 ~ + 75 |
°C |
| Storage temperature |
Tstg |
55 ~ + 125 |
°C |
| Maximum input voltage |
VIN |
4.5 |
V |
| Maximum LED drive current |
IDL |
20 |
mA |
(1)Reduced by 5 mW for each increase in Ta of 1 over 25
BA6104 Features
· Drives an LED bar display in proportion to the input level.
· The output current can be set to a maximum of 15mA using external resistors, allowing free selection of the
type and color of the LEDs.
· The input level at which all LEDs light can be set in the range 0.5V to 3.0V using external resistors.
· High input impedance.
· Easy-to-handle 9-pin SIP package.
· The output current can be set to a maximum of 15mA using external resistors, allowing free selection of the
type and color of the LEDs.
· The input level at which all LEDs light can be set in the range 0.5V to 3.0V using external resistors.
· High input impedance.
· Easy-to-handle 9-pin SIP package.
BA6104 Typical Application
·Signal meters, tuning meters and voltage checkers.

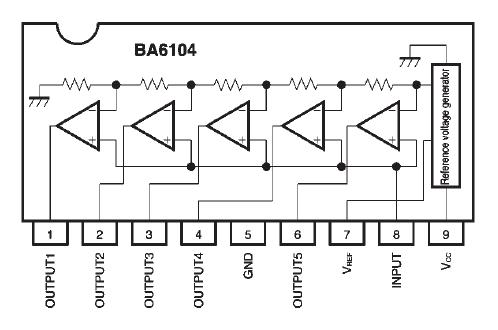

BA6104 Connection Diagram
BA6104
