Purchase BA6810S, In-stock BA6810S From SeekIC.
MFG:ROHM Package Cooled:DIP
- Table of contents:
BA6810S
-
Suppliers
DataSheet
General Description
BA6810S Features
1) Uses dynamic-drive system to display two 12-point channels. 30-pin SDIP package.
2) AC and DC inputs provided. Switching function allows two-mode display.
3) Upper 8 points have peak hold function in AC mode (two seconds Typ.).
4) Power-on mute function.
5) Forced-mute function.
6) Terminal for meter sensitivity adjustment provided (adjustment with one terminal is possible).
7) I2L injector current terminal provided.
8) Square root compression amplifier built in.
9) Dynamic-drive system reduces the power dissipation of the fluorescent display tube power supply.
BA6810S Typical Application
Level meters for all types of AV equipment

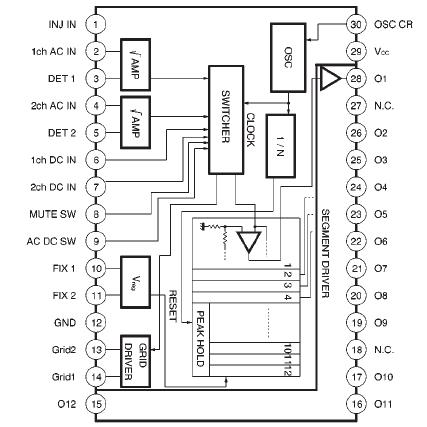

BA6810S Connection Diagram
BA6810S
