Purchase BA6822S, In-stock BA6822S From SeekIC.
MFG:ROHM Package Cooled:DIP
- Table of contents:
BA6822S
-
Suppliers
DataSheet
General Description
BA6822S Features
1) Uses dynamic-drive system to display two 12-point channels. 22-pin SOP and 22-pin shrink DIP packages.
2) Independent AC and DC inputs provided (one input displays one channel). Switching function allows two-mode display.
3) Upper 8 points have peak hold function in AC mode (two seconds). A peak-hold cancel function is also provided.
4) A mute function is provided, and muting can be applied externally.
5) Power on mute function.
BA6822S Typical Application
Level meters for VCRs, stereo cassette players, audio
amplifiers and karaoke equipment.

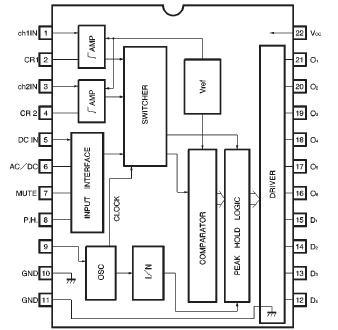

BA6822S Connection Diagram
BA6822S
PDF/DataSheet Download
- Datasheet: BA6822S
- File Size: 176610 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
