Purchase BA7149F, In-stock BA7149F From SeekIC.
MFG:ROHM Package Cooled:SOP16
- Table of contents:
BA7149F
-
Suppliers
DataSheet
General Description
BA7149F Maximum Ratings
|
Parameter |
Symbol |
Limits |
Unit |
| Applied voltage |
VCCMax. |
8.0 |
V |
| Power dissipation |
Pd |
500* |
mW |
| Operating temperature |
Topr |
20 ~ +75 |
°C |
| Storage temperature |
Tstg |
55 ~ + 125 |
°C |
BA7149F Features
1) Operates off a 5V power supply.
2) Built-in vertical deflection circuit.
3) Built-in wide-bandwidth amplifier.
4) Built-in HD and VD output terminals.
5) Few attached components required.
6) SOP 16pin package.
7) Compatible with 10m sec flyback pulses.
2) Built-in vertical deflection circuit.
3) Built-in wide-bandwidth amplifier.
4) Built-in HD and VD output terminals.
5) Few attached components required.
6) SOP 16pin package.
7) Compatible with 10m sec flyback pulses.
BA7149F Typical Application
Video cameras

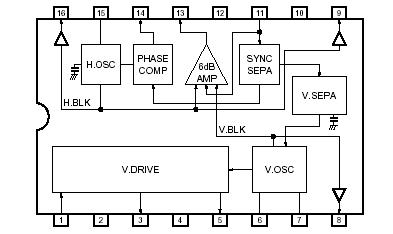

BA7149F Connection Diagram
BA7149F
PDF/DataSheet Download
- Datasheet: BA7149F
- File Size: 85556 KB
- Manufacturer: ROHM [Rohm]
