Purchase BA7649A, In-stock BA7649A From SeekIC.
MFG:ROHM Package Cooled:DIP
Part Number: BA7649A
MFG: ROHM
Package Cooled: DIP
Description: The BA7649A and BA7649AF are five-channel analog multiplexers (the IN5 pin can be u...
- Table of contents:
BA7649A
-
Suppliers
DataSheet
General Description
BA7649A General Description
The BA7649A and BA7649AF are five-channel analog multiplexers (the IN5 pin can be used a mute input) designed for use in video cassette recorders. They feature large dynamic range, and wide operating frequency range, and have sync-tip inputs which are ideal for switching video signals.
BA7649A Maximum Ratings
| Parameter | Symbol | Limits | Unit |
| Power supply voltage | Vcc |
13.5 | V |
| Allowable current | Pd | 1100* | mW |
| Operating temperature | Topr | -25~+75 | |
| Storage temperature | Tstg | -55~+125 |
BA7649A Features
5-input / 1-output switches.
Built-in mute (the IN5 pin can be use a mute input).
Sync-tip clamp inputs.
Wide operating supply voltage range (4.5V to 13.0V).
Low power consumption (48mW Typ.).
Excellent frequency characteristics (10MHz, 0dB Typ.).
Wide dynamic range (3.5VP-P Typ.).
Low interchannel crosstalk ( 65dB Typ., f = 4.43MHz).
DIP / SOP 14 pin package.
BA7649A Typical Application
Video cassette recorders and televisions

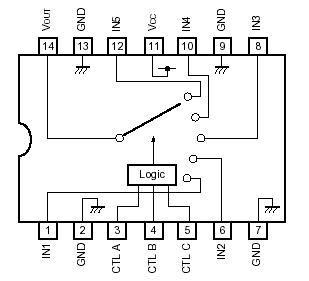

BA7649A Connection Diagram
BA7649A
