Purchase BA7664FV, In-stock BA7664FV From SeekIC.
MFG:ROHM Package Cooled:TSSOP-8P D/C:02+
- Table of contents:
BA7664FV
-
Suppliers
DataSheet
General Description
BA7664FV Maximum Ratings
|
Parameter |
Symbol |
Limits |
Unit |
| Power supply voltage |
VCC |
8 |
V |
| Power dissipation |
Pd |
350 |
mW |
| Operating temperature |
Topr |
25 ~ + 75 |
|
| Storage temperature |
Tstg |
55 ~ + 125 |
BA7664FV Features
1) The compact 8-pin SSOP-B package is used.
2) Operates at a low power consumption (60mW Typ.).
3) Internal Y / C MIX circuit.
4) Internal output muting circuit.
5) Internal power-saving circuit.
6) Internal output protection circuit.
7) Internal sag correction function makes it possible to reduce the capacitance of the output coupling capacitor.
8) A load sufficient for two circuits can be driven.
BA7664FV Typical Application
Video cameras, electronic cameras and others

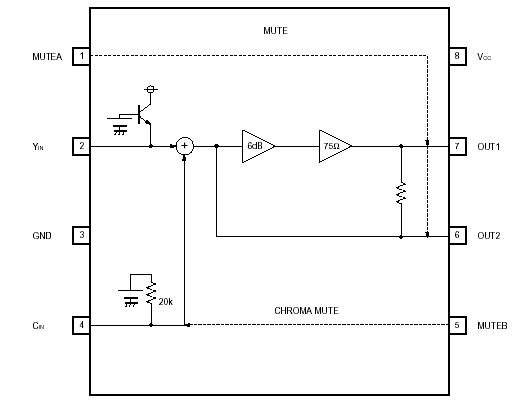

BA7664FV Connection Diagram
BA7664FV
PDF/DataSheet Download
- Datasheet: BA7664FV
- File Size: 81628 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
