Part Number: BA7796FS
MFG: ROHM
Description: The BA7796FS is a standard audio signal processor designed for use in VCRs and tape decks. ...
- Table of contents:
BA7796FS
-
Suppliers
DataSheet
General Description
BA7796FS General Description
The BA7796FS is a standard audio signal processor designed for use in VCRs and tape decks. The circuit is comprised of a playback preamplifier, a line amplifier, a recording amplifier, an ALC circuit, an EQ switch, and high-voltage head switch.
The IC has three input switching systems, and a built-in coil equivalent circuit for recording equalization, which eliminates the need for an external component.
BA7796FS Maximum Ratings
| Parameter | Symbol | Limits | Unit | |
| Power supply voltage | Vcc |
13 | V | |
| Power dissipation | Pd | 800* | mW | |
| Operating temperature | Topr | 10 ~+ 65 | ||
| Storage temperature | Tstg | −55~ +125 | ||
BA7796FS Features
Three input switching systems built-in (LINE1, LINE2, and TUNER).
Built-in coil equivalent circuit for recording equalization.
Two-mode EQ switch.
High-performance low-noise playback amplifier.
Fixed ALC level ( 7.2dB when VCC = 12V).
Phase-inverting recording amplifier.
BA7796FS Typical Application
Video cassette recorders and tape decks

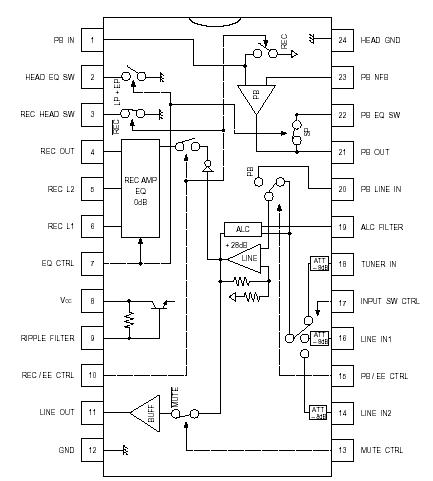

BA7796FS Connection Diagram
BA7796FS
