Five Points

Part Number: BF483









Description: ●NPN transistors in a TO-92 plastic package.●PNP complement: BF488






Online Consultation
Attentive hint

Want to post a buying lead? If you are not a member yet, please input the part number and fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.



 How to buy ?       How long will receive a response.

BF483 Suppliers

More BF483 Suppliers

Select All

  • BF483

  • Vendor: Philips Pack: TO-92 D/C: 07+& Qty: 3000 Note: new and original  Adddate: 2010-09-05
  • Inquire Now
  • Bizon Industry Co., Limited   China
    Contact: Ms.Echo   MSN:bizon_ic@hotmail.com
    Tel: 0086-0755-82567682
    Fax: 0086-0755-82567683
    (1514)

  • BF483

  • Vendor: PHI Pack: TO-92 D/C: 99& Qty: 20000 Note: New original IN STOCK  Adddate: 2010-09-05
  • Inquire Now
  • HK Kingrav Electronic Company   China
    Contact: Ms.Wen   MSN:aki-wen@hotmail.com
    Tel: 86-755-82541122
    Fax: 86-755-82541522
    (203)

  • BF483

  • Vendor: SIEMENS Pack: www.dayue-hk.com D/C: 09+ ROHS& Qty: 5000 Note: Original 100% Nate-hk@dayue-hk.com   Adddate: 2010-09-05
  • Inquire Now
  • DAYUE (HK) TRADE LIMITED   China
    Contact: Mr.Nate   MSN:Nate-hk@live.cn
    Tel: 0086-0755-83013544
    Fax: 0086-0755-83041894
    (932)

  • BF483

  • Vendor: 飞利浦 D/C: 袋装& Qty: 2000  Adddate: 2010-09-05
  • Inquire Now
  • Shenzhen GengHeng Electronic Co.ltd.   China
    Contact: Mr.yishihuang   MSN:hjsh88@hotmail.com
    Tel: 86-755-3 3 0 6 1 8 7 5 / 2 1 8 9 5 5 8 7
    Fax: 86-755-83279252
    (1)

About BF483

PDF/DataSheet Download

Datasheet: BF483

File Size: 42918 KB

Manufacturer: PHILIPS [Philips Semiconductors]

Download : Click here to Download

Related PDF Download

Related Part Number

General Description

●NPN transistors in a TO-92 plastic package.
●PNP complement: BF488

Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO

collector-base voltage
BF483
BF485
BF487

 open emitter

-
-
-

 300
350
400		 V
V
V
VCEO collector-emitter voltage
BF483
BF485
BF487		 open base

-
-
-

 250
300
350		 V
V
V
VEBO emitter-base voltage open collector - 5 V
IC collector current (DC)   - 50 mA
ICM peak collector current   - 100 mA
IBM peak base current   - 50 mA
Ptot total power dissipation Tamb ≤ 25 ℃; note 1 - 625 mW
Tstg storage temperature   −65 +150 ℃
Tj junction temperature   - 150 ℃
Tamb operating ambient temperature   −65 +150 ℃

Features

• Low feedback capacitance.

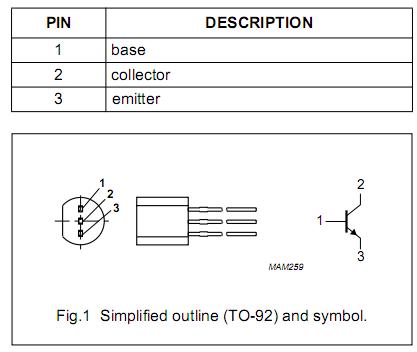

Connection Diagram
