Part Number: BF488









Description: ●PNP transistor in a TO-92; SOT54 plastic package.●NPN complements: BF483, BF485 and BF487.






Online Consultation
Attentive hint

Want to post a buying lead? If you are not a member yet, please input the part number and fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.



 How to buy ?       How long will receive a response.

BF488 Suppliers

More BF488 Suppliers

Select All

  • BF488

  • Vendor: Philips Pack: TO-92 D/C: 07+& Qty: 2000 Note: new and original  Adddate: 2010-09-05
  • Inquire Now
  • Bizon Industry Co., Limited   China
    Contact: Ms.Echo   MSN:bizon_ic@hotmail.com
    Tel: 0086-0755-82567682
    Fax: 0086-0755-82567683
    (1514)

  • BF488

  • Vendor: PHI Pack: TO-92 D/C: 04& Qty: 30000 Note: New original IN STOCK  Adddate: 2010-09-05
  • Inquire Now
  • HK Kingrav Electronic Company   China
    Contact: Ms.Wen   MSN:aki-wen@hotmail.com
    Tel: 86-755-82541122
    Fax: 86-755-82541522
    (203)

  • BF488

  • Vendor: UTC D/C: O9+& Qty: 50000 Note: 深圳全新原装现货  Adddate: 2010-09-05
  • Inquire Now
  • SHENZHEN KJX Electronic Co.,Lt   China
    Contact: Mr.Caicaoze   MSN:caicaoze@hotmail.com/dowan2008@hotmail.com
    Tel: 00086-0755-82985878
    Fax: 00086-0755-82985876
    (637)

  • BF488

  • Vendor: 飞利蒲 Pack: 二极 D/C: 排TO-92& Qty: 80000  Adddate: 2010-09-05
  • Inquire Now
  • Shenzhen GengHeng Electronic Co.ltd.   China
    Contact: Mr.yishihuang   MSN:hjsh88@hotmail.com
    Tel: 86-755-3 3 0 6 1 8 7 5 / 2 1 8 9 5 5 8 7
    Fax: 86-755-83279252
    (1)

About BF488

PDF/DataSheet Download

Datasheet: BF488

File Size: 43026 KB

Manufacturer: PHILIPS [Philips Semiconductors]

Download : Click here to Download

Related PDF Download

Related Part Number

General Description

●PNP transistor in a TO-92; SOT54 plastic package.
●NPN complements: BF483, BF485 and BF487.

Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter - −350 V
VCEO collector-emitter voltage open base - −350 V
VEBO emitter-base voltage open collector - −5 V
IC collector current (DC)   - −100 mA
ICM peak collector current   - −200 mA
IBM peak base current   - −100 mA
Ptot total power dissipation Tamb ≤ 25 ℃; note 1 - 830 mW
Tstg storage temperature   −65 +150 ℃
Tj junction temperature   - 150 ℃
Tamb operating ambient temperature   −65 +150 ℃
Note
1. Transistor mounted on a printed-circuit board.

Features

• Low feedback capacitance.

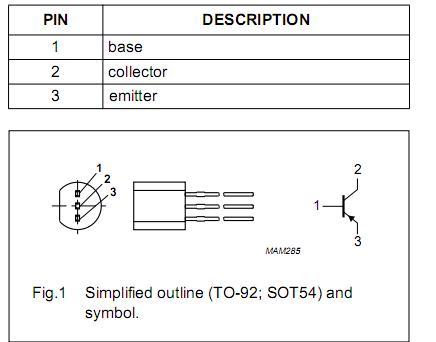

Connection Diagram
