Part Number: BFG10X



MFG: PHILIPS

Package Cooled: 06+

D/C: -

Description: NPN silicon planar epitaxial transistor encapsulated in a plastic, 4-pin dual-emitter SOT343 package.<...


Urgent Purchase

BFG10X General Description


NPN silicon planar epitaxial transistor encapsulated in a plastic, 4-pin dual-emitter SOT343 package.

BFG10X Maximum Ratings

SYMBOL PARAMETER
CONDITIONS
MIN.
MAX.
UNIT
VCBO collector-base voltage
open emitter
-
20
V
VCEO collector-emitter voltage
open base
-
10
V
VEBO emitter-base voltage
open collector
-
2.5
V
IC collector current (DC)
-
250
mA
IC(AV) average collector current
-
250
mA
Ptot total power dissipation
up to Ts = 102 °C; note 1
-
400
mW
Tstg storage temperature
-65
+150
°C
Tj junction temperature
-
175
°C

BFG10X Features

· High efficiency
· Small size discrete power amplifier
· 900 MHz and 1.9 GHz operating areas
· Gold metallization ensures excellent reliability.

BFG10X Typical Application

· Common emitter class-AB operation in hand-held radio equipment up to 1.9 GHz.

BFG10X Connection Diagram

BFG10X Connection Diagram

BFG10X datasheet

BFG10X
PDF/DataSheet Download

Find BFG10X Suppliers

  • ·BFG10
  • PHILIPS [Philips Semiconductors]
  • NPN 2 GHz RF power transistor
  • 76569 KB
  • BFG10 Datasheet Download
  • ·BFG10/X
  • PHILIPS [Philips Semiconductors]
  • NPN 2 GHz RF power transistor
  • 76569 KB
  • BFG10/X Datasheet Download
  • ·BFG10W
  • PHILIPS [Philips Semiconductors]
  • UHF power transistor
  • 59808 KB
  • BFG10W Datasheet Download
  • ·BFG11
  • PHILIPS [Philips Semiconductors]
  • NPN 2 GHz RF power transistor
  • 81839 KB
  • BFG11 Datasheet Download
  • ·BFG11/X
  • PHILIPS [Philips Semiconductors]
  • NPN 2 GHz RF power transistor
  • 81839 KB
  • BFG11/X Datasheet Download
  • ·BFG11W
  • PHILIPS [Philips Semiconductors]
  • NPN 2 GHz power transistor
  • 100389 KB
  • BFG11W Datasheet Download
  • ·BFG11W/X
  • PHILIPS [Philips Semiconductors]
  • NPN 2 GHz power transistor
  • 100389 KB
  • BFG11W/X Datasheet Download
  • ·BFG11X
  • Philips
  • NPN 2 GHz power transistor
  • 81042 KB
  • BFG11X Datasheet Download

Related Part Number

BFG10X Relative Products

  • BFG10W/X,115

    BFG10W/X,115

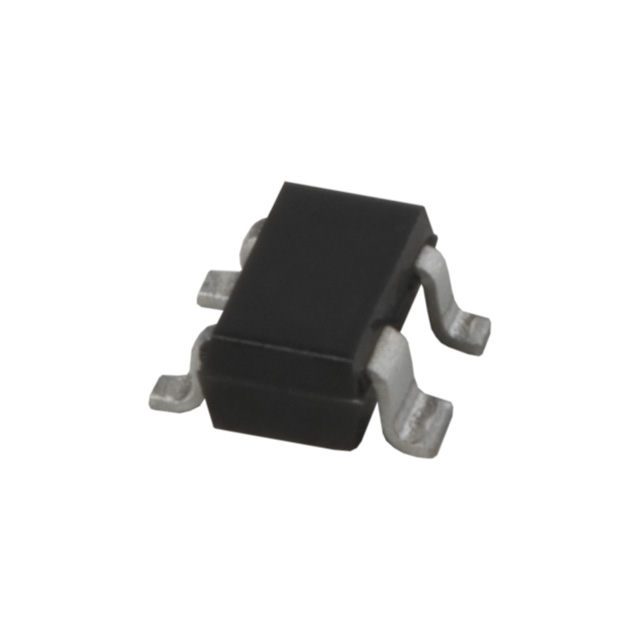

    TRANS NPN 10V 250MA SOT343N
