Product Details

Description



Features:

* High power gain
* Easy power control
* Excellent ruggedness
* Source on underside eliminates DC isolators, reducing common mode inductance
* Designed for broadband operation (HF to 1 GHz).



Application

* Communication transmitter applications in the UHF frequency range.

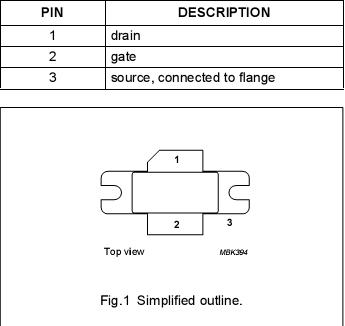

Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDS drain-source voltage 65 V
VGS gate-source voltage ±20 V
ID DC drain current 9 A
Tstg storage temperature -65 150 C
Tj junction temperature 200 C



Description

Silicon N-channel enhancement mode lateral D-MOS transistor BLF1048 encapsulated in a 2-lead flange package (SOT502A) with a ceramic cap. The common source is connected to the mounting flange.
