Product Details

Description



Features:

* Emitter ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.

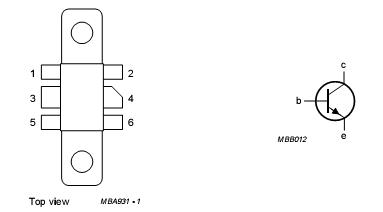

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 36 V
VCES collector-emitter voltage open base  16 V
VEBO emitter-base voltage open collector 3 V
IC peak collector current DC or average value 3.5 A
Ptot total power dissipation up to Tmb =25 °C 44 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200



Description

NPN silicon planar epitaxial transistor BLV193 intended for common emitter class-A and class-AB operation in the 900 MHz communications band.

The BLV193 has a SOT171 flange envelope with a ceramic cap. All leads are isolated from the mounting base.
