Part Number: BLV99/SL



MFG: MOT





Description: NPN silicon planar epitaxial transistor encapsulated in a 4-lead SOT172D envelope with a ceramic cap. It is designed pr...


Urgent Purchase

BLV99/SL General Description


NPN silicon planar epitaxial transistor encapsulated in a 4-lead SOT172D envelope with a ceramic cap. It is designed primarily for use as a driver stage in base stations in the 900 MHz communications band. All leads are isolated from the mounting base.

BLV99/SL Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCBO collector-base voltage open emitter 50 V
VCES collector-emitter voltage open base  27 V
VEBO emitter-base voltage open collector 3.5 V
IC collector current DC or average value 200 A
ICM collector current peak value f > 1 MHz 600 A
Ptot total power dissipation f > 1 MHz;Ts = 103 °C
(note 1)		 6 W
Tstg storage temperature -65 +150
Tj operating junction temperature 200

BLV99/SL Features

* Emitter-ballasting resistors for an optimum temperature profile
* Gold metallization ensures excellent reliability.

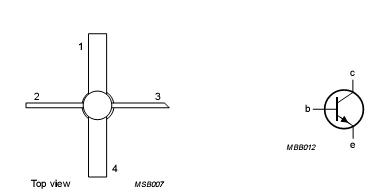

BLV99/SL Connection Diagram

BLV99/SL Connection Diagram
