Part Number: BU2727A
MFG: PHI
Description: High voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflectio circui...
- Table of contents:
BU2727A
-
Suppliers
DataSheet
General Description
BU2727A General Description
High voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflectio circuits of high resolution monitors, suitable for operation up to 64 kHz. Designed to withstand VCES pulses up 1700V.
BU2727A Maximum Ratings
| SYMBOL | PARAMETER | CONDTIONS |
MIN. |
MAX. |
UNIT |
|
VCESM |
Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Reverse base current Reverse base current peak value1 Total power dissipation Storage temperature Junction temperature |
VBE=0V average over any 20 ms period Ths25 |
- - - - - - - - - -65 - |
1700 825 12 30 12 25 200 25 125 150 150 |
V V A A A A mA A W |

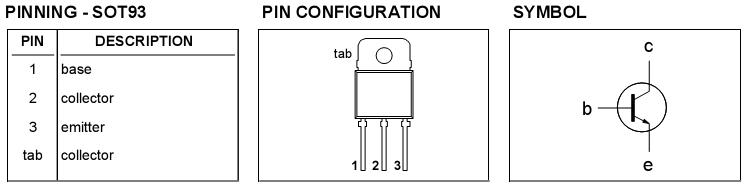

BU2727A Connection Diagram
BU2727A
