Purchase BU2730AL, In-stock BU2730AL From SeekIC.
Part Number: BU2730AL
Description: New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal ...
- Table of contents:
BU2730AL
-
Suppliers
DataSheet
General Description
BU2730AL General Description
New generation, high-voltage, high-speed switching npn transistor in a plastic envelope intended for use in horizontal deflection circuits of large screen colour television receivers.
BU2730AL Maximum Ratings
| SYMBOL | PARAMETER | CONDTIONS |
MIN. |
MAX. |
UNIT |
|
VCESM |
Collector to emitter voltage Collector to emitter voltage (open base) Collector current (DC) Collector current peak value Base current (DC) Base current peak value Reverse base current Reverse base current peak value1 Total power dissipation Storage temperature Junction temperature |
VBE=0V average over any 20 ms period Ths25 |
- - - - - - - - - -55 - |
1700 825 16 40 10 15 200 10 125 150 150 |
V V A A A A mA A W |

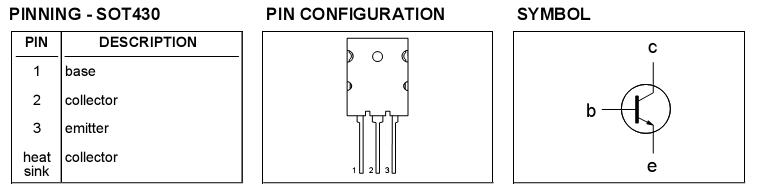

BU2730AL Connection Diagram
BU2730AL
PDF/DataSheet Download
- Datasheet: BU2730AL
- File Size: 20974 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
