BU508AX General Description


High voltage, high-speed switching npn transistors in a fully isolated SOT399 envelope, primarily for use in horizontal deflection circuits of colour television receivers.

BU508AX Maximum Ratings

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
VCESM
VCEO
IC
ICM
IB
IBM
Ptot
Tstg
Tj		  Collector-emitter voltage peak value
Collector-emitter voltage (open base)
Collector current (DC)
Collector current peak value
Base current (DC)
Base current peak value
Total power dissipation
Storage temperature
Junction temperature		 VBE = 0 V
Ths 25

-
-
-
-
-
-
-
-65
-

1500
700
8
15
4
6
45
150
150

 V
V
A
A
A
A
W

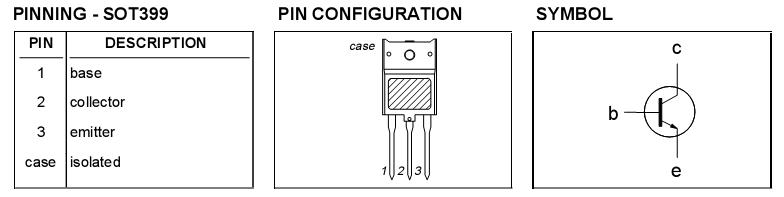

BU508AX Connection Diagram

BU508AX Connection Diagram

BU508AX datasheet

BU508AX
