Part Number: BUK224-50Y



MFG: PHILIPS

Package Cooled: TO220

D/C: 05+

Description: Monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic surface m...


Urgent Purchase

BUK224-50Y General Description


Monolithic single channel high side protected power switch in TOPFET2 technology assembled in a 5 pin plastic surface mount package.

BUK224-50Y Maximum Ratings

 SYMBOL  PARAMETER  CONDITIONS  MIN.  MAX.  UNIT
 VBG  Continuous supply voltage    0  50  V
 IL  Continuous load current  Tmb100  -  25  A
 PD  Total power dissipation  Tmb25  -  80  W
 Tstg  Storage temperature    -55  175
 Tj  Continuous junction temperature1    -  150
 Tsold  Mounting base temperature  during soldering  -  260
   Reverse battery voltages2
 -VBG  Continuous reverse voltage    -  16  V
 -VBG  Peak reverse voltage    -  32  V
   Application information
 RI, RS  External resistors3  to limit input, status currents  3.2  -  k
   Input and status
 II, IS  Continuous currents    -5  5  mA
 II, IS  Repetitive peak currents  0.1, tp=300s  -50  50  mA
   Inductive load clamping  IL=10A, VBG=16V
 EBL  Non-repetitive clamping energy  Tj=150 prior to turn-off  -  270  mJ

BUK224-50Y Features

Vertical power TrenchMOS
Low on-state resistance
CMOS logic compatible
Very low quiescent current
Overtemperature protection
Load current limiting
Latched overload and short circuit protection
Overvoltage and undervoltage shutdown with hysteresis
On-state open circuit load detection
Diagnostic status indication
Voltage clamping for turn off of inductive loads
ESD protection on all pins
Reverse battery, overvoltage and transient protection

BUK224-50Y Typical Application

General controller for driving lamps, motors, solenoids, heaters.

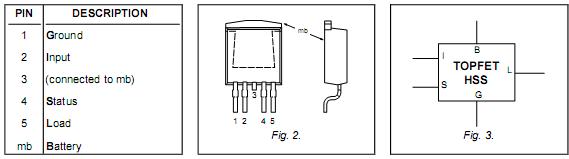

BUK224-50Y Connection Diagram

BUK224-50Y Connection Diagram
