BULK118

Features:

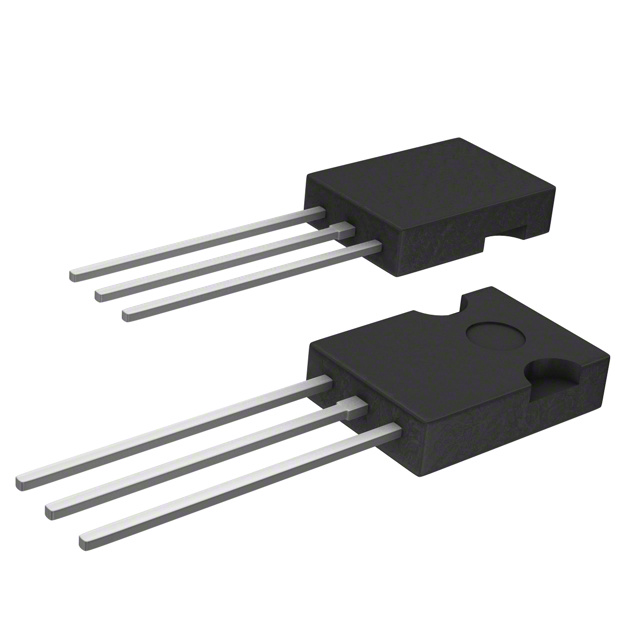

*BULK118 IS REVERSE PINS OUT Vs STANDARD SOT-82 PACKAGE AND SAME PINS OUT Vs BULT118 (SOT-32 PACKAGE)
*STMicroelectronics PREFERRED SALESTYPES
*NPN TRANSISTOR
*HIGH VOLTAGE CAPABILITY
*LOW SPREAD OF DYNAMIC PARAMETERS
*MINIMUM LOT-TO-LOT SPREAD FOR RELIABLE OPERATION
*VERY HIGH SWITCHING SPEED


Application

*ELECTRONIC BALLASTS FOR FLUORESCENT LIGHTING
*FLYBACK AND FORWARD SINGLE TRANSISTOR LOW POWER CONVERTERS


Specifications

Symbol	Parameter	Value	Unit
VCES	Collector-Emitter Voltage (VBE= 0)	700	V
VCEO	Collector-Emitter Voltage (IB= 0)	400	V
VEBO	Emitter-Base Voltage (IC = 0)	9	V
IC	Collector Current	2	A
ICM	Collector Peak Current (tP<5 ms)	4	A
IB	Base Current	1	A
IBM	Base Peak Current (tP<5 ms)	2	A
Ptot	Total Dissipation at Tc = 25	45	W
Tstg	Storage Temperature	-65 to 150
Tj	Max. Operating Junction Temperature	150

Description

BULK118 is manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and medium voltage capability.

BULK118 uses a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA.

BULK118 is designed for use in lighting applications and low costs witch-modepower supplies.
