Part Number: BY329-1500



MFG: PHILIPS

Package Cooled: TO-220



Description: Glass-passivated double diffused rectifierdiodefeaturinglowforward voltage drop, fast reverse recovery and soft recover...


Urgent Purchase

BY329-1500 General Description


Glass-passivated double diffused rectifierdiodefeaturinglowforward voltage drop, fast reverse recovery and soft recovery characteristic. The device is intended for use in TV receivers and PC monitors.

TheBY329seriesissuppliedinthe conventional leaded SOD59 (TO220AC) package.

BY329-1500 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VRSM Peak non-repetitive peak
reverse voltage		 1500 V
VRRM Peak repetitive reverse
voltage		 1500 V
VRWM Crest working reverse voltage 1300 V
I F(peak) Peak working forward curren f = 16 kHz
f = 70 kHz		 6 -
- 6		 A
I FRM Peak repetitive forward
current		 t = 25 s; = 0.5;
Tmb 123 		14 A
IF(RMS) RMS forward current 11 A
IFSM Peak non-repetitive forward
current		 t = 10 ms
sinusoidal; Tj = 150  prior to
surge; with reapplied V
RWM(max)		 75 A
Tstg storage temperature -40 +150
Tj operating junction temperature +150

BY329-1500 Features

* Low forward volt drop
* Fast switching
* Soft recovery characteristic
* High thermal cycling performance
* Low thermal resistance

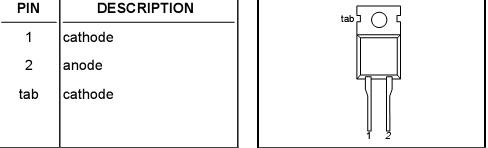

BY329-1500 Connection Diagram

BY329-1500 Connection Diagram

BY329-1500 datasheet

BY329-1500
PDF/DataSheet Download

  • Datasheet: BY329-1500
  • File Size: 36503 KB
  • Manufacturer: PHILIPS [Philips Semiconductors]
  • Click here to Download
