General Description
BZA100 General Description
18-fold monolitic transient voltage suppressor. Its 18-fold junction common anode design protects 18 separate lines using only one package. This device is ideal for situations where board space is a premium.
BZA100 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| IZ | working current | - | note 1 | mA | |
| IF | continuous forward current | - | 200 | mA | |
| IFSM | non-repetitive peak forward current | tp = 1 ms; square pulse | - | 4 | A |
| IZSM | non-repetitive peak reverse current | tp = 1 ms; square pulse; see Fig.2 | - | 2.5 | A |
| Ptot | total power dissipation | see Fig.3 up to Ts= 60 °C; note 2 up to Tamb= 25 °C; note 3 |
- - |
1.6 1.25 |
W W |
| PZSM | non-repetitive peak reverse power dissipation |
tp = 1 ms; square pulse; see Fig.4 | - | 27.5 | W |
| Tstg | storage temperature | -65 | +150 | °C | |
| Tj | operating junction temperature | - | 150 | °C |
Notes
1. DC working current limited by Ptot max.
2. One or more diodes loaded; Ts is the temperature at the soldering point.
3. One or more diodes loaded; device mounted on a printed-circuit board with Rth a-s = 43.5 K/W.
BZA100 Features
· SO20 SMD package allows 18 separate voltage regulator diodes in a common anode configuration
· Working voltage: typ. 6.8 V
· Forward voltage: max. 1.3 V
· Maximum reverse peak power dissipation: 27.5 W at tp = 1 ms
· Maximum clamping voltage at peak pulse current: 11 V at 2.5 A
· Low leakage current: max. 2 mA
· ESD rating >8 kV, according IEC 801-2.
· Working voltage: typ. 6.8 V
· Forward voltage: max. 1.3 V
· Maximum reverse peak power dissipation: 27.5 W at tp = 1 ms
· Maximum clamping voltage at peak pulse current: 11 V at 2.5 A
· Low leakage current: max. 2 mA
· ESD rating >8 kV, according IEC 801-2.
BZA100 Typical Application
` Where transient overvoltage protection in voltage and ESD sensitive equipment is required such as:
Computers
Printers
Business machines
Communication systems
Medical equipment.
Computers
Printers
Business machines
Communication systems
Medical equipment.

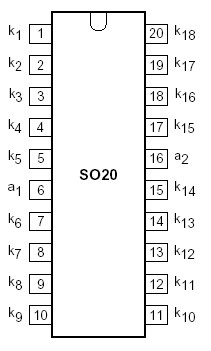

BZA100 Connection Diagram
BZA100
PDF/DataSheet Download
- Datasheet: BZA100
- File Size: 61960 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
