Part Number: BZA109



MFG: PHILIPS





Description: 9-fold monolithic transient voltage suppressor in an SO20; SOT163-1 surface mount package. The device ...


Urgent Purchase

BZA109 General Description


9-fold monolithic transient voltage suppressor in an SO20; SOT163-1 surface mount package. The device ideal in situations where board space is a premium.

BZA109 Maximum Ratings

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Per diode
IZ working current Tamb = 25 °C - 20 mA
IF continuous forward current Tamb = 25 °C - 100 mA
IFT feed-through current Tamb = 25 °C;note 1 100 mA
IFSM non-repetitive peak forward current tp = 1 ms; square pulse - 4.5 A
IZSM non-repetitive peak reverse current tp = 1 ms; square pulse; see Fig.2 - 2.5 A
Ptot total power dissipation Tamb = 25 °C;note 2; see Fig.3 - 1.25 W
PZSM non-repetitive peak reverse power
dissipation		 tp = 1 ms; square pulse; see Fig.4 - 25 W
Tstg storage temperature -65 +150 °C
Tj operating junction temperature -65 +150 °C

Notes
1. Current is flowing from input to corresponding output.
2. One or more diodes loaded.

BZA109 Features

· ESD rating >8 kV, according to IEC1000-4-2
· SOT163-1 surface mount package
· Common anode configuration
· Non-clamping range 0.5 to 6.8 V
· Maximum non-repetitive peak reverse power dissipation: 25 W at tp = 1 ms
· Maximum clamping voltage at peak pulse current: 10 V at IZSM = 2.5 A.

BZA109 Typical Application

` For 9-bit wide undershoot/ overshoot clamping and fast ESD transient suppression in:
Computers and peripherals
Audio and video equipment
Business machines
Communication systems
Medical equipment.

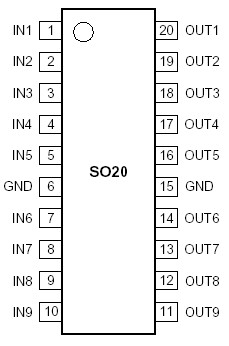

BZA109 Connection Diagram
