Features:

· ESD rating > 8 kV, according to IEC1000-4-2
· SOT339 surface mount package
· Common anode configuration
· Non-clamping range 0 - 6.8 V, negative clamping range <0.5 V, positive clamping range >6.8 V.

Application

· Computer and peripherals
· Audio and video equipment
· Communication systems
· Medical equipment.

Pinout

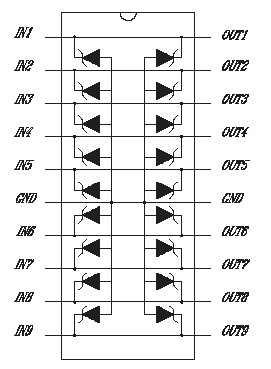

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
I_Z	reverse current	DC; T_amb = 25 °C	-	20	mA
I_F	forward current	DC; T_amb = 25 °C	-	100	mA
I_FT	feed-through current	DC; T_amb= 25 °C; note 1	-	100	mA
I_FSM	peak forward current	t_p = 1 ms; square wave	-	4.5	A
I_ZSM	peak reverse current	t_p= 1 ms; square wave	-	2.5	A
P_tot	total power dissipation	T_amb = 25 °C; note 2	-	0.95	W
T_stg	storage temperature		-65	+150	°C
T_j	junction temperature		-65	+150	°C

Description

Monolithic silicon zener BZA109TSdiode in a SOT339-1 package (SO20) for 9 bit wide undershoot/overshoot clamping, combined with fast ESD transient suppression.
