Features:

• High Performance 16-bit CPU with 4-Stage Pipeline
80 ns Instruction Cycle Time at 25 MHz CPU Clock
400 ns Multiplication (16 ´ 16 bit), 800 ns Division (32 / 16 bit)
Enhanced Boolean Bit Manipulation Facilities
Additional Instructions to Support HLL and Operating Systems
Register-Based Design with Multiple Variable Register Banks
Single-Cycle Context Switching Support
16 MBytes Total Linear Address Space for Code and Data
1024 Bytes On-Chip Special Function Register Area
• 16-Priority-Level Interrupt System with 28 Sources, Sample-Rate down to 40 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC)
• Clock Generation via prescaler or via direct clock input
• On-Chip Memory Modules
2 KBytes On-Chip Internal RAM (IRAM)
• On-Chip Peripheral Modules
Two Multi-Functional General Purpose Timer Units with 5 Timers
Two Serial Channels (Synchronous/Asynchronous and High-Speed-Synchronous)
• Up to 16 MBytes External Address Space for Code and Data
Programmable External Bus Characteristics for Different Address Ranges
Multiplexed or Demultiplexed External Address/Data Buses with 8-Bit or 16-Bit Data Bus Width
Five Programmable Chip-Select Signals
Hold- and Hold-Acknowledge Bus Arbitration Support
• Idle and Power Down Modes
• Programmable Watchdog Timer
• Up to 77 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• Power Supply: the C165 can operate from a 5 V or a 3 V power supply
• Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards • On-Chip Bootstrap Loader
• 100-Pin MQFP Package (0.65 mm pitch)
• 100-Pin TQFP Package (0.5 mm pitch)


Pinout

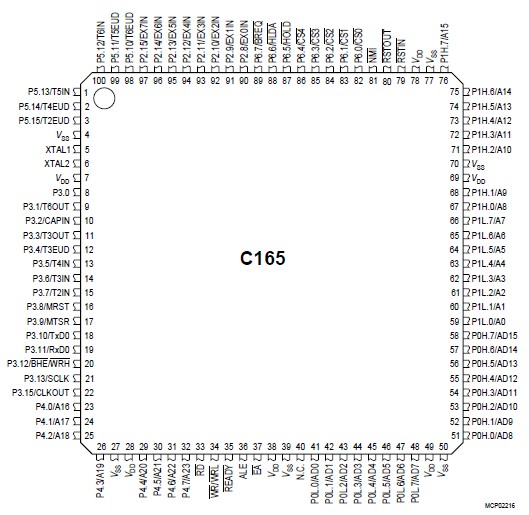

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Notes
min.
max.
Storage temperature
TST
-65
150
°C
-
Junction temperature
TJ
-40
150
°C
under bias
Voltage on VDD pins with
respect to ground (VSS)
VDD
-0.5
6.5
V
-
Voltage on any pin with
respect to ground (VSS)
VIN
-05
VDD + 0.5
V
-
Input current on any pin
during overload condition
-
-10
10
mA
-
Absolute sum of all input
currents during overload
condition
-
-
|100|
mA
-
Power dissipation
PDISS
-
1.5
W
-
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. During absolute maximum rating overload conditions (VIN > VDD or VIN < VSS) the voltage on VDD pins with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.
