CAT93C86

Features:

 High speed operation: 3MHz
 Low power CMOS technology
 1.8 to 6.0 volt operation
 Selectable x8 or x16 memory organization
 Self-timed write cycle with auto-clear
 Hardware and software write protection
 Power-up inadvertant write protection
 1,000,000 Program/erase cycles
 100 year data retention
 Commercial, industrial and automotive temperature ranges
 Sequential read
 Program enable (PE) pin
 "Green" package option available

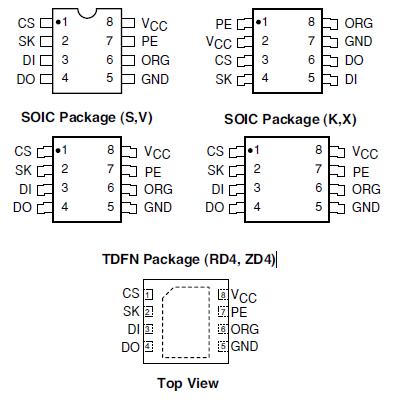

Pinout




Specifications

Temperature Under Bias .................. -55°C to +125°C
Storage Temperature ....................... -65°C to +150°C
Voltage on any Pin with
Respect to Ground(1) .....................-2.0V to +VCC +2.0V
VCC with Respect to Ground ....................-2.0V to +7.0V
Package Power Dissipation
Capability (TA = 25°C)............................................1.0W
Lead Soldering Temperature (10 secs) ................300°C
Output Short Circuit Current(2) ........................... 100 mA


Description

The CAT93C86 is a 16K-bit Serial EEPROM memory device which is configured as either registers of 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C86 is manufactured using Catalyst's advanced CMOS EEPROM floating gate technology. The device is designed to endure 1,000,000 program/erase cycles and has a data retention of 100 years. The device is available in 8-pin DIP, 8-pin SOIC, 8-pin TSSOP and 8-pad TDFN packages.
