Product Details

Description



Features:

• Automatic Line Buildout
• Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.1V
• Buffered Output


Application

• Bipolar Carrier System . . . . . . . . . . . . .T1 1.544Mbits/s
• Ternary Carrier System . . . . . . . . . . . T148 2.37Mbits/s

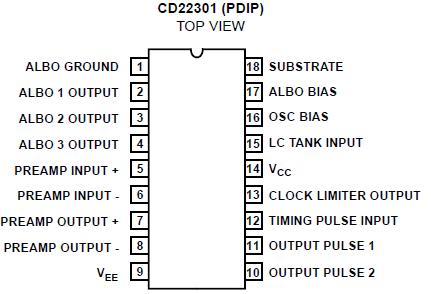

Pinout

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
Input Current (Into Pin 9 or 10). . . . . . . . . . . . . . . . . . . . . . . ..25mA
Peak Current (Into Pin 9 or 10). . . . . . . . . . . . . . . . . . . . . . . .100mA
Input Surge Voltage (Between Pins 5 and 6, t = 10ms) . . . . . . . 50V
Output Surge Voltage (Between Pins 10 and 11, t = 1ms) . . . . . 50V
Power Dissipation
For TA = -40 to 60 . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . 500mW
For TA = 60 to 85 . .. . . .  . . Derate Linearly 12mW/ to 200mW
Device Dissipation per Output Transistor
For TA = Full Package Temperature Range (All Types) . . . . . .. 100mW


Description

    The CD22301 monolithic PCM repeater circuit is designed for T1 carrier systems operating with a bipolar pulse train of 1.544Mbits/s. It can also be used in the T148 carrier system operating with a ternary pulse train of 2.37Mbits/s. The circuit operates from a 5.1V ±5% externally regulated supply.

    The CD22301 provides active circuitry to perform all functions of signal equalization and amplification, automatic line buildout (ALBO), threshold detection, clock extraction, pulse timing and buffered output formation.
