CD4002BMS

Features:

• High-Voltage Types (20V Rating)
• Propagation Delay Time = 60ns (typ.) at CL = 50pF, VDD = 10V
• Buffered Inputs and Outputs
• Standard Symmetrical Output Characteristics
• 100% Tested for Maximum Quiescent Current at 20V
• 5V, 10V and 15V Parametric Ratings
• Maximum Input Current of 1A at 18V Over Full Package-Temperature Range; 100nA at 18V and +25
• Noise Margin (Over Full Package Temperature Range):
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
• Meets All Requirements of JEDEC Tentative Standards No. 13B, "Standard Specifications for Description of "B" Series CMOS Device's

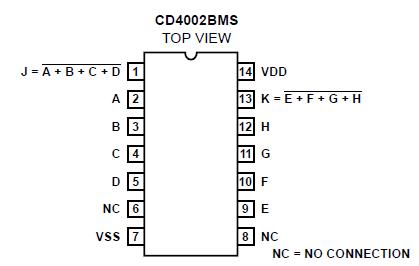

Pinout

Specifications

DC Supply Voltage Range, (VDD) . . . . . . . .  . . . . . . . . .  . . . . .  . -0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . . . . . . . . . .  . . . . .  . .-0.5V to VDD +0.5V
DC Input Current, Any One Input . . . . . . . . . . . . .   . . . . . . . . . . . . . . . .±10mA
Operating Temperature Range. . . . . . . . . . .  . . . . .  . . . . . . . . .-55 to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG) . . . . . . . . . . . . .  . . . .  .  . .-65 to +150
Lead Temperature (During Soldering) . . . . . .  . . . . .  . . . . . . . . .  . . . . . +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum


Description

CD4000BMS - Dual 3 Plus Inverter
CD4001BMS - Quad 2 Input
CD4002BMS - Dual 4 Input
CD4025BMS - Triple 3 Input
CD4000BMS, CD4001BMS, CD4002BMS, and CD4025BMS NOR gates provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.
The CD4000BMS, CD4001BMS, CD4002BMS and the CD4025BMS is supplied in these 14 lead outline packages:

	CD4000B	CD4001B	CD4002B	CD4025B
Braze Seal DIP	H4X	H4Q	H4Q	H4Q
Frit Seal DIP	H1B	H1B	H1B	H1B
Ceramic Flatpack	H3W	H3W	H3W	H3W
