CD4010BMS

Features: • Non-Inverting Type• High-Voltage Type (20V Rating)• 100% Tested for Quiescent Current at 20V• Maximum Input Current of 1A at 18V Over Full Package-Temperature Range; - 100nA at 18V and +25• 5V, 10V and 15V Parametric RatingsApplication• CMOS To DTL/T...

product image

CD4010BMS Picture
See larger image
SeekIC No. : 004311172 Detail

CD4010BMS: Features: • Non-Inverting Type• High-Voltage Type (20V Rating)• 100% Tested for Quiescent Current at 20V• Maximum Input Current of 1A at 18V Over Full Package-Temperature Ran...

CD4010BMS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CD4010BMS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Non-Inverting Type
• High-Voltage Type (20V Rating)
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package-Temperature Range;
   - 100nA at 18V and +25
• 5V, 10V and 15V Parametric Ratings


Application

• CMOS To DTL/TTL Hex Converter
• CMOS Current "Sink" or "Source" Driver
• CMOS High-to-Low Logic-Level Converter
• Multiplexer - 1 to 6 or 6 to 1

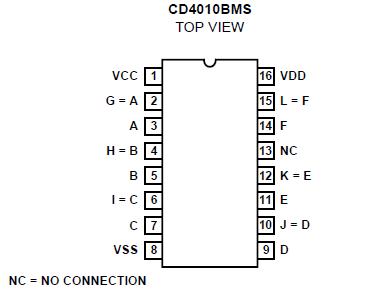

Pinout

Connection Diagram


Specifications

DC Supply Voltage Range, (VDD) . . . . . . . . . . . .. . . . .. . . . . . . . .-0.5V to +20V
(Voltage Referenced to VSS Terminals)
Input Voltage Range, All Inputs . . . . . .. . . . .. . . . . . . . . . . -0.5V to VDD +0.5V
DC Input Current, Any One Input. . . . . .. . . . . . . . . . . . . . . . . . . . . . . .±10mA
Operating Temperature Range . . . . . . . .. . . . .. . . . . . . . . . . . -55 to +125
Package Types D, F, K, H
Storage Temperature Range (TSTG). . . . . . . . . . . .. . . . .. . . . . -65 to +150
Lead Temperature (During Soldering) . . . . . . . . . . . . .. . . . .. . . . . . . . . +265
At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum
