CD4094BMS

• High Voltage Type (20V Rating)
• 3-State Parallel Outputs for Connection to Common Bus
• Separate Serial Outputs Synchronous to Both Positive and Negative Clock Edges for Cascading
• Medium Speed Operation - 5MHz at 10V (typ)
• Standardized Symmetrical Output Characteristics
• 100% Tested for Quiescent Current at 20V
• Maximum Input Current of 1A at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC
• Noise Margin (Over Full Package/Temperature Range)
      1V at VDD = 5V
      2V at VDD = 10V
      2.5V at VDD = 15V
• 5V, 10V and 15V Parametric Ratings
• Meets All Requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"

CD4094BMS is a 8-stage serial shift register having a storage latch associated with each stage for strobing data from the serial input to parallel buffered 3-state outputs. The parallel outputs may be connected directly to common bus lines. Data is shifted on positive clock transitions. The data in each shift register stage is transferred to the storage register when the STROBE input is high. Data in the storage register appears at the outputs whenever the OUTPUT-ENABLE signal is high.

Two serial outputs are available for cascading a number of CD4094BMS devices. Data is available at the QS serial output terminal on positive clock edges to allow for high-speed operation in cascaded systems in which the clock rise time is fast. The same serial information, available at the Q'S terminal on the next negative clock edge, provides a means for cascading CD4094BMS devices when the clock rise time is slow.

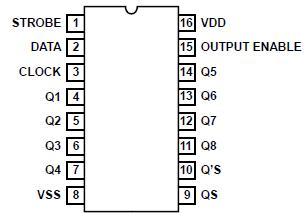

The CD4094BMS is supplied in these 16 lead outline packages:
   Braze Seal DIP      H4X
   Frit Seal DIP          H1F
   Ceramic Flatpack  H6W
