Part Number: CLC952
Description: The CLC952 is a complete monolithic 12-bit 41MSPS analog-todigitaconverter system. Fabricated from a 0.8mm BiCMO proces...
- Table of contents:
CLC952
-
Suppliers
DataSheet
General Description
CLC952 General Description
The CLC952 is a complete monolithic 12-bit 41MSPS analog-todigitaconverter system. Fabricated from a 0.8mm BiCMO process, the CLC952's on-chip features include a very linear wideband track-and-hold, bandgap voltage reference and a proprietary 12-bit multi-stage quantizer. The CLC952 has been
designed for wideband digital communications receivers and features a 72dBc spurious-free dynamic range (SFDR) and 64dB signal-to-noise ratio (SNR).
The CLC952 operates from a standard ±5V power supply and features excellent noise isolation with its >60dB power-supply rejection ratio (PSRR). All digital control functions and output registers are TTL compatible. The CLC952AC operates over the commercial temperature range (0°C to 70°C), and the CLC952AJ operates over the industrial temperature range (-40°C to 85°C) version. The CLC952 is available in a 28-pin SSOP that provides an extremely small footprint for reduced board space. National Semiconductor thoroughly tests each part to verify full compliance with guaranteed specifications.
CLC952 Maximum Ratings
positive supply voltage (VCC) -0.5V to +6V
negative supply voltage (VEE) +0.5V to -6V
differential voltage between any two grounds <200mV
analog input voltage range VEE to VCC
digital input voltage range -0.5V to +VCC
output short circuit duration (one-pin to ground) infinite
junction temperature 175°C
storage temperature range -65°C to 150°C
lead solder duration (+300°C) 10sec
Note: Absolute maximum ratings are limiting values, to be applied individually, and beyond which the serviceability of the circuit may be impaired. Functional
operability under any of these conditions is not necessarily implied. Exposure to maximum ratings for extended periods may affect device reliability.
negative supply voltage (VEE) +0.5V to -6V
differential voltage between any two grounds <200mV
analog input voltage range VEE to VCC
digital input voltage range -0.5V to +VCC
output short circuit duration (one-pin to ground) infinite
junction temperature 175°C
storage temperature range -65°C to 150°C
lead solder duration (+300°C) 10sec
Note: Absolute maximum ratings are limiting values, to be applied individually, and beyond which the serviceability of the circuit may be impaired. Functional
operability under any of these conditions is not necessarily implied. Exposure to maximum ratings for extended periods may affect device reliability.
CLC952 Features
41MSPS
Wide dynamic range
SFDR: 72dBc
SNR: 64dB
Low power dissipation: 660mW
Ground centered, DC-coupled analog input
Excellent PSRR: >60dB
Very small package: 28-pin SSOP
Low cost
Wide dynamic range
SFDR: 72dBc
SNR: 64dB
Low power dissipation: 660mW
Ground centered, DC-coupled analog input
Excellent PSRR: >60dB
Very small package: 28-pin SSOP
Low cost
CLC952 Typical Application
Cellular base-stations
Digital communications
Infrared/CCD imaging
IF sampling
Electro-optics
Instrumentation
Medical imaging
High definition video
Digital communications
Infrared/CCD imaging
IF sampling
Electro-optics
Instrumentation
Medical imaging
High definition video

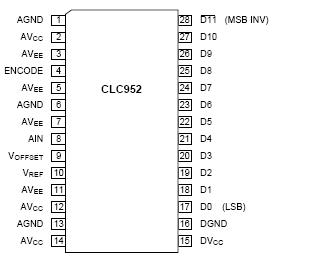

CLC952 Connection Diagram
CLC952
PDF/DataSheet Download
- Datasheet: CLC952
- File Size: 239270 KB
- Manufacturer:
- Click here to Download
- ·CLC001
- NSC [National Semiconductor]
- Serial Digital Cable Driver with Adjustable Outputs
- 159265 KB
- ·CLC001AJE
- NSC [National Semiconductor]
- Serial Digital Cable Driver with Adjustable Outputs
- 159265 KB
- ·CLC002
- NSC [National Semiconductor]
- SMPTE 292M / 259M Serial Digital Cable Driver
- 457189 KB
- ·CLC002MA
- NSC [National Semiconductor]
- SMPTE 292M / 259M Serial Digital Cable Driver
- 457189 KB
- ·CLC005
- NSC [National Semiconductor]
- ITU-T G.703 Cable Driver with Adjustable Outputs
- 341456 KB
- ·CLC005AJE
- NSC [National Semiconductor]
- ITU-T G.703 Cable Driver with Adjustable Outputs
- 341456 KB
- ·CLC006
- NSC [National Semiconductor]
- Serial Digital Cable Driver with Adjustable Outputs
- 194521 KB
- ·CLC006AJE
- NSC [National Semiconductor]
- Serial Digital Cable Driver with Adjustable Outputs
- 194521 KB
CLC952 Relative Products
CLC949
The Comlinear CLC949 is a 12-bit analog-to-digital converter sub-system including 12-bit quantizer, sample-and-hold amplifier, and internal reference. The CLC949 has been optimized for low power operation with high dynamic range. The CLC949 has a unique fea...
CLC935
The Comlinear CLC935 is a high-speed high-performance 12-bit Analog-to-Digital converter. the CLC935 is a complete A/D subsystem, including 12-bit quantizer, track-and-hold, and references. The ECL compatible A/D has maximum sample rates of 15MSPS, allowing ...

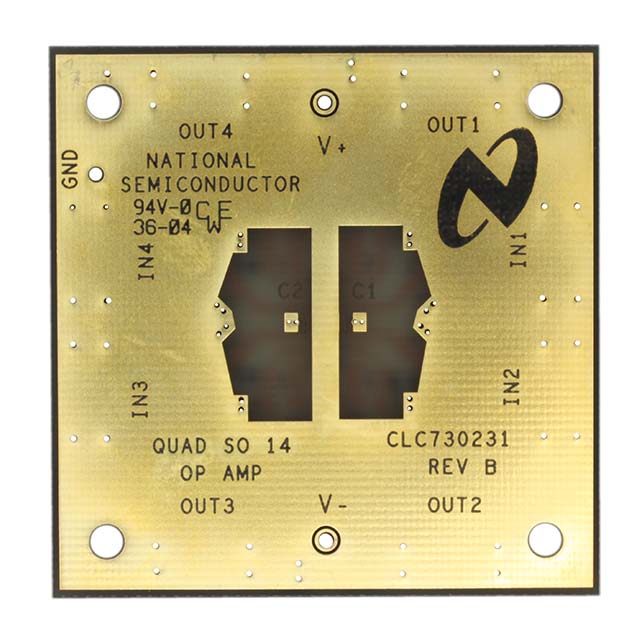

CLC730231
