CMA8864-04

`Supports Pentium and Pentium II CPUs.
`Two (2) copies of CPUCLK clock powered with VDDL2, two (2) copies of CPUCLK powered with VDD3..
` Twelve (12) SDRAM clocks powered by VDD3.
`Seven (7) copies of PCI clock (1/2 CPU clock or asynchronous 2/5 CPU clock).
`IOAPIC clock @14.318MHz driven by VDDL1.
`24/48 MHz outputs (3.3V TTL)
`Two Ref. Clock @ 14.318MHz (3.3V TTL).
` 60mA buffer switching current @3.3V.
`Optional common or mixed power supply mode
   VDD1, 2, 3 = VDDL2, 1 = 3.3V
  VDD1, 2, 3 = 3.3V; VDDL2, 1 = 2.5V
`< 250ps skew between CPU/SDRAM buffers.
`<500ps skew between PCI buffers.
`Power management controlled by CPU_STOP#, PCI_STOP#.
`I<sup>2</sup>C Serial configuration interface.

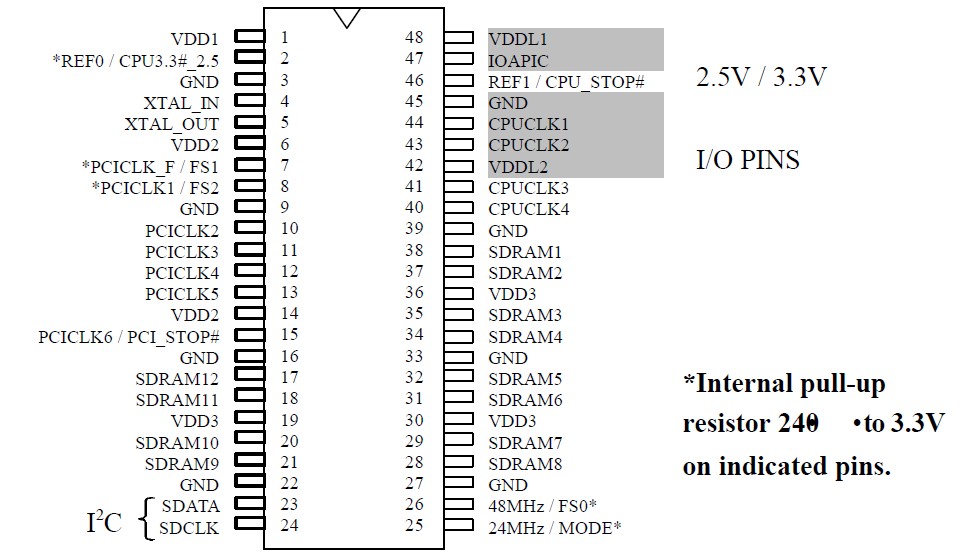

` 48 pins SSOP package.
