CWSC11JFAFS, US $ 1.87-2 , NKK Switches, CWSC11JFAFS DataSheet download, circuit diagram from SeekIC.com

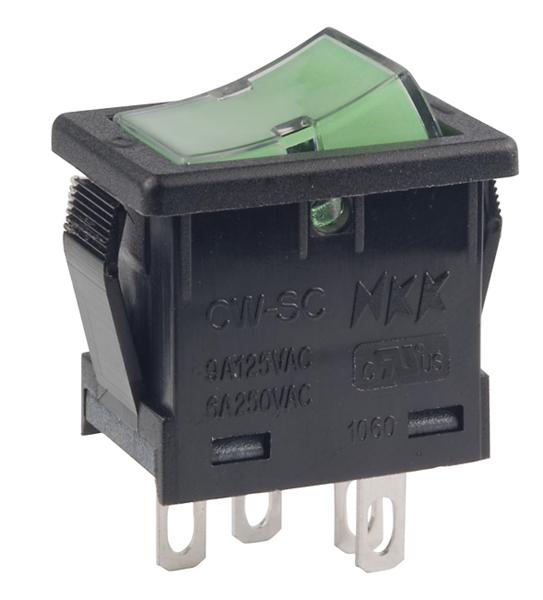

See larger image

SeekIC No. : 002626090 Detail

CWSC11JFAFS: Rocker Switches & Paddle Switches SPST ON-NONE-OFF GRN

CWSC11JFAFS Data Sheet

US $ 1.87~2 / Piece | Get Latest Price

Part Number:: CWSC11JFAFS
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$2
$1.96
$1.93
$1.87

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

CWSC10120NK evaluate
US $221.9 - 237.76 / Piece

Wire Ducting STRAIGHT 10x10x120" SCREW COVER
CWSC1012NK evaluate
US $32.8 - 35.14 / Piece

Wire Ducting STRAIGHT 10x10x12" SCREW COVER
CWSC1024NK evaluate
US $61.39 - 65.78 / Piece

Wire Ducting STRAIGHT 10x10x24" SCREW COVER

Product Details

Quick Details

Contact Form :	SPST	Switch Function :	ON - NONE - OFF
Current Rating :	9 A	Voltage Rating AC :	250 V
Termination Style :	Lug	Actuator :	Rocker
Color :	Green	Mounting Style :	Panel
Contact Plating :	Silver	Illumination :	Illuminated
Illumination Color :	Clear, Green

Description

Voltage Rating DC :
Power Rating :
Terminal Seal :
Actuator : Rocker
Mounting Style : Panel
Contact Plating : Silver
Voltage Rating AC : 250 V
Contact Form : SPST
Switch Function : ON - NONE - OFF
Illumination : Illuminated
Termination Style : Lug
Color : Green
Current Rating : 9 A
Illumination Color : Clear, Green

Parameters:

Technical/Catalog Information	CWSC11JFAFS
Vendor	NKK Switches of America Inc
Category	Switches
Mounting Type	Panel Mount, Snap-In
Circuit	SPST
Switch Function	On-Off
Contact Rating @ Voltage	9A @ 125VAC
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage	2.1 VDC
Termination Style	Quick Connect - .110" (2.8mm)
Panel Cutout Dimensions	19.20mm x 12.90mm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CWSC11JFAFS CWSC11JFAFS 360 1736 ND 3601736ND 360-1736
