Features:

• I2C bus compatible
• Compatible with both PAL and NTSC systems (also compatible with SECAM if a SECAM decoder is connected)
• Built-in deflection compensation circuit capable of supporting various wide modes
• Countdown system eliminates need for H and V oscillator frequency adjustment
• Automatic identification of 50/60Hz vertical frequency (forced control possible)
• Non-interlace display support (even/odd selectable)
• Automatic identification of PAL, NTSC, and SECAM color systems (forced control possible)
• Automatic identification of 4.43MHz/3.58MHz crystal (forced control possible)
• Non-adjusting Y/C block filter
• One CV input, one set of Y/C inputs, two sets of analog RGB inputs (one set of which can serve as both analog and digital inputs)
• Built-in AKB circuit
• Support for forcing YS1 off


Application

·Color TVs (4:3, 16:9)


Pinout

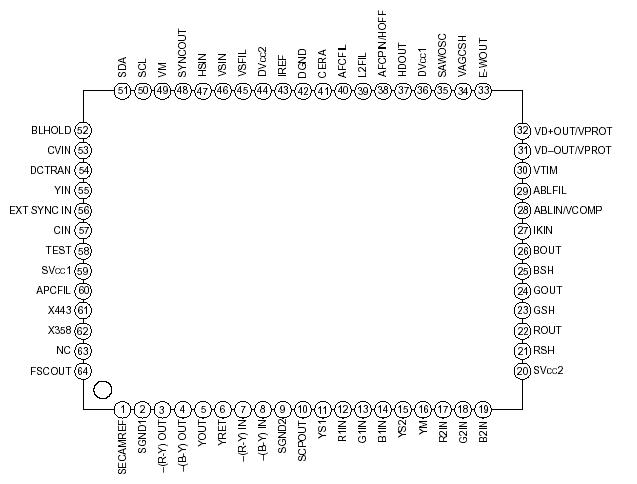

Connection Diagram


Specifications

• Supply voltage SVCC1, 2, DVCC1, 2  . . . . . . . . . . . . . . .0.3 to 12 V
• Operating temperature Topr  . . . . . . . . . . . . . . . . .20 to +65 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . . . . . . . . . . .1.7 W
(when mounted on 50mm *50mm board)
• Voltages at each pin 0.3 to SVCC1, SVCC2, DVCC1, DVCC2 + 0.3 V


Description

The CXA2000Q is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC/PAL system color TVs onto a single chip. This CXA2000Q includes= deflection processing functions for wide-screen TVs, and is also equipped with a SECAM decoder interface, making it possible to construct a TV system that supports multiple color systems.
