CXA2050S

Features: • I2C bus compatible• Compatible with both PAL and NTSC systems (also compatible with SECAM if a SECAM decoder is connected)• Built-in deflection compensation circuit capable of supporting various wide modes• Countdown system eliminates need for H and V oscillator...

product image

CXA2050S Picture
See larger image
SeekIC No. : 004318217 Detail

CXA2050S: Features: • I2C bus compatible• Compatible with both PAL and NTSC systems (also compatible with SECAM if a SECAM decoder is connected)• Built-in deflection compensation circuit cap...

CXA2050S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2050S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• I2C bus compatible
• Compatible with both PAL and NTSC systems (also compatible with SECAM if a SECAM decoder is connected)
• Built-in deflection compensation circuit capable of supporting various wide modes
• Countdown system eliminates need for H and V oscillator frequency adjustment
• Automatic identification of 50/60Hz vertical frequency (forced control possible)
• Non-interlace display support (even/odd selectable)
• Automatic identification of PAL, NTSC, and SECAM color systems (forced control possible)
• Automatic identification of 4.43MHz/3.58MHz crystal (forced control possible)
• Non-adjusting Y/C block filter
• One CV input, one set of Y/C inputs, two sets of analog RGB inputs (one set of which can serve as both analog and digital inputs)
• Built-in AKB circuit
• Support for forcing YS1 off


Application

·Color TVs (4:3, 16:9)


Pinout

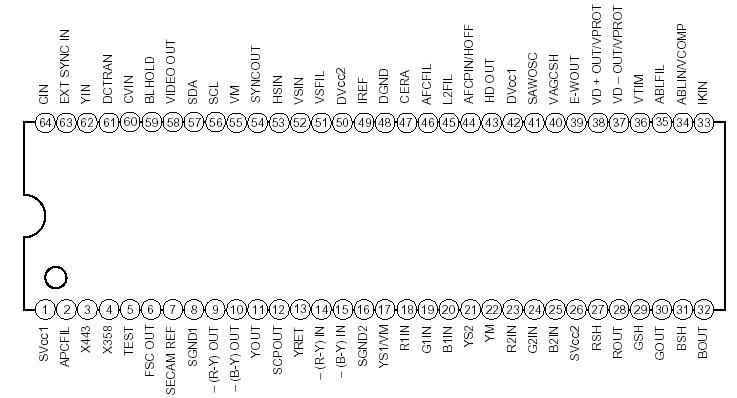

Connection Diagram


Specifications

• Supply voltage SVCC1, 2, DVCC1, 2  . . . . . . . . .0.3 to +12 V
• Operating temperature Topr  . . . . . . . . . . . . . 20 to +65 °C
• Storage temperature Tstg  . . . . . . . . . . . . . .65 to +150 °C
• Allowable power consumption PD . . . . . . . . . . . . . . . . . 1.7 W
• Voltages at each pin 0.3 to SVCC1, SVCC2, DVCC1, DVCC2 + 0.3 V


Description

The CXA2050S is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for PAL/NTSC system color TVs onto a single chip. This IC CXA2050S includes deflection processing functions for wide-screen TVs, and is also equipped with a SECAM decoder interface, making it possible to construct a TV system that supports multiple color systems.
