CXA2064M

Features: • Adjustment free of VCO and filter.• Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is possible through this IC.• Various built-in filter circuits greatly reduce external parts.• ...

product image

CXA2064M Picture
See larger image
SeekIC No. : 004318223 Detail

CXA2064M: Features: • Adjustment free of VCO and filter.• Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is poss...

CXA2064M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2064M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Adjustment free of VCO and filter.
• Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is possible through this IC.
• Various built-in filter circuits greatly reduce external parts.
• This IC is near pin to pin compatible with the CXA2020M.




Application

·TV, VCR and other decoding systems for US audio multiplexing TV broadcasting

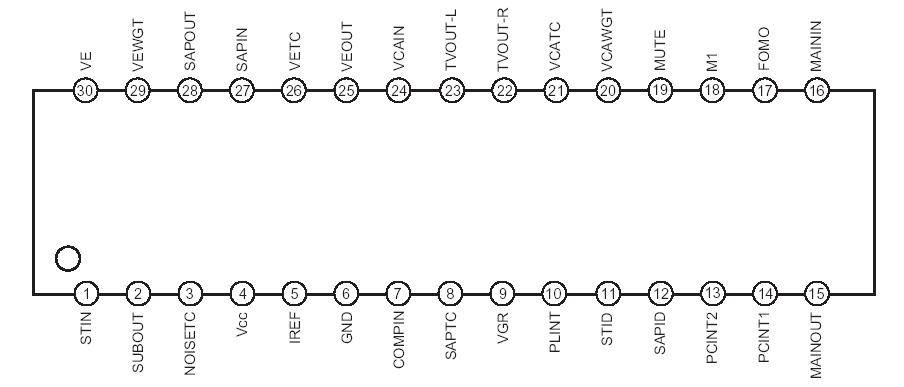

Pinout

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . . . . . . . 11 V
• Operating temperature Topr  . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . .  65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . .1000 mW
• STID, SAPID drive current IO  . . . . . . . . . . 2 (max.) mA


Description

The CXA2064M is an IC designed as a decoder for the Zenith TV Multi-channel System. Functions include stereo demodulation, SAP (Separate Audio Program) demodulation, dbx noise reduction.
