CXA2079Q

Features: • 4 inputs that are compatible with S2 protocol• Serial control with I2C bus• 6 inputs, 2 outputs• The desired inputs can be selected independently for each of the 2 outputs• Wide band video amplifier (20MHz, 3dB)• Y/C MIX circuit• Slave address ...

product image

CXA2079Q Picture
See larger image
SeekIC No. : 004318233 Detail

CXA2079Q: Features: • 4 inputs that are compatible with S2 protocol• Serial control with I2C bus• 6 inputs, 2 outputs• The desired inputs can be selected independently for each of the ...

CXA2079Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2079Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4 inputs that are compatible with S2 protocol
• Serial control with I2C bus
• 6 inputs, 2 outputs
• The desired inputs can be selected independently for each of the 2 outputs
• Wide band video amplifier (20MHz, 3dB)
• Y/C MIX circuit
• Slave address can be changed (90H/92H)
• Audio muting from external pin
• High impedance maintained by I2C bus lines (SDA, SCL) even when power is OFF
• Wide audio dynamic range (3Vrms typ.)


Application

·Audio/video switch featuring I2C bus compatibility for TVs

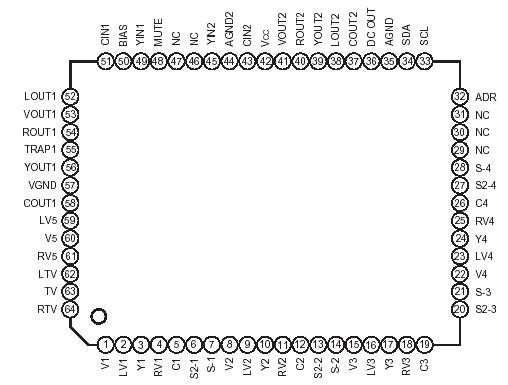

Pinout

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature Topr  . . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . .  1300 mW


Description

The CXA2079Q is a 6-input, 2-output audio/video Switch featuring I2C bus compatibility for TVs. This IC has input pins that are compatible with S2 protocol.
