CXA2126Q

Features: • 2 scart independent audio/video switching (TV, VCR)• Compatible with 3 scart Audio/Video switch, CXA2125Q• 0 to 63dB volume control with click noise reduction• 3 stereo audio inputs• I2C control• Scart Function Switching input and output• Scart...

product image

CXA2126Q Picture
See larger image
SeekIC No. : 004318247 Detail

CXA2126Q: Features: • 2 scart independent audio/video switching (TV, VCR)• Compatible with 3 scart Audio/Video switch, CXA2125Q• 0 to 63dB volume control with click noise reduction• 3 ...

CXA2126Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2126Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2 scart independent audio/video switching (TV, VCR)
• Compatible with 3 scart Audio/Video switch, CXA2125Q
• 0 to 63dB volume control with click noise reduction
• 3 stereo audio inputs
• I2C control
• Scart Function Switching input and output
• Scart Fast Blanking for OSD
• Mono switchable to stereo on TV and VCR outputs
• On-chip +12V to +9V voltage regulator
• Logic output
• Selectable +6dB, +12dB gain on TV output
• RGB input on VCR scart


Application

Digital Set Top Box


Pinout

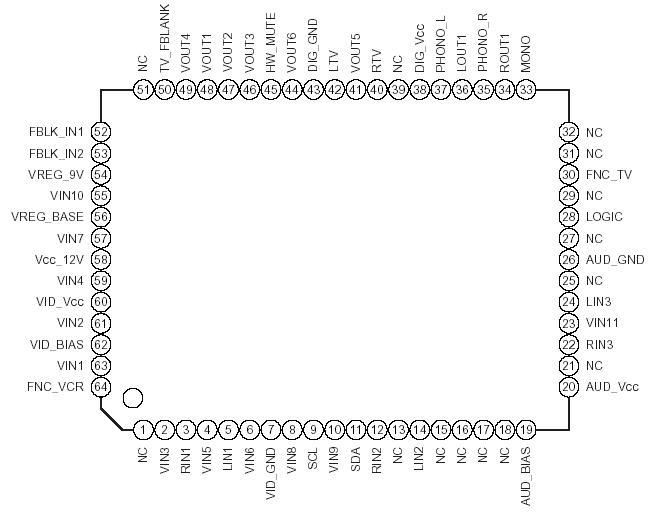

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature Topr . . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . . . 850 mW


Description

The CXA2126Q is an I2C programmable audio, video switch designed primarily for set top box applications. CXA2126Q interfaces from digital encoder sources to TV and VCR scart connectors.
