Product Details

Description

Features:

• Loudness
• Volume control (from 0 dB to 80 dB, ¥ dB : Fine (1 dB-step) Coarse (8 dB-step)
• Balance
• Tone control (2-band, 2 dB-step from 15 dB to +15 dB)
• Fader 2 dB-step to 20 dB, 25 dB, 35 dB, 45 dB, 60 dB, ¥ dB)
• Input and gain selector (4 channels)
• Serial data control (DATA, CLK, CE)
• Single 8 V power supply
• Zero-cross detection circuit (L/R independent operation for the volume block)
• Timer
• Power-off mute
• Countermeasure to the noise of the portable telephone

Pinout

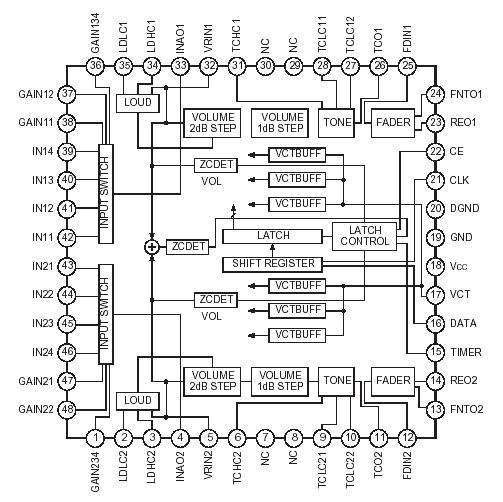

Connection Diagram

Specifications

• Supply voltage V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 V
• Operating temperature T_opr . . . . . . . . . . . .40 to +85 °C
• Storage temperature T_stg . . . . . . . . . . . ..65 to +150 °C
• Allowable power dissipation P_D . . . . . . . . . . . . . . .350 mW

Description

The CXA2547Q is a 2-channel electronic volume IC. A 34-bit serial data input controls the level and characteristics of the output signal. It may be used in car stereos and general audio systems.
