General Description
CY7C1046B General Description
The CY7C1046B is a high-performance CMOS static RAM organized as 1,048,576 words by 4 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE), an active LOW Output Enable (OE), and three-state drivers. Writing to the device is accomplished by taking Chip Enable (CE) and Write Enable (WE) inputs LOW. Data on the four I/O pins (I/O0 through I/O3) is then written into the location specified on the address pins (A0 through A19).
Reading from the device is accomplished by taking Chip Enable (CE) and Output Enable (OE) LOW while forcing Write Enable (WE) HIGH. Under these conditions, the contents of the memory location specified by the address pins will appear on the I/O pins.
The four input/output pins (I/O0 through I/O3) are placed in a high-impedance state when the device is deselected (CE HIGH), the outputs are disabled (OE HIGH), or during a write operation (CE LOW, and WE LOW).
The CY7C1046B is available in a standard 400-mil-wide 32-pin SOJ package with center power and ground (revolutionary) pinout.
CY7C1046B Maximum Ratings
(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature ................................65°C to +150°C
Ambient Temperature with
Power Applied............................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1] ....... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1] ....................................0.5V to VCC + 0.5V
DC Input Voltage[1] ................................0.5V to VCC + 0.5V
Current into Outputs (LOW) ........................................ 20 mA
Static Discharge Voltage ........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current..................................................... >200 mA
Storage Temperature ................................65°C to +150°C
Ambient Temperature with
Power Applied............................................55°C to +125°C
Supply Voltage on VCC to Relative GND[1] ....... 0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State[1] ....................................0.5V to VCC + 0.5V
DC Input Voltage[1] ................................0.5V to VCC + 0.5V
Current into Outputs (LOW) ........................................ 20 mA
Static Discharge Voltage ........................................... >2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current..................................................... >200 mA
CY7C1046B Features
• High speed
-tAA = 12 ns
• Low active power
-935 mW (max.)
• Low CMOS standby power (L version)
-2.75 mW (max.)
• 2.0V Data Retention (400 W at 2.0V retention)
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE and OE features
-tAA = 12 ns
• Low active power
-935 mW (max.)
• Low CMOS standby power (L version)
-2.75 mW (max.)
• 2.0V Data Retention (400 W at 2.0V retention)
• Automatic power-down when deselected
• TTL-compatible inputs and outputs
• Easy memory expansion with CE and OE features

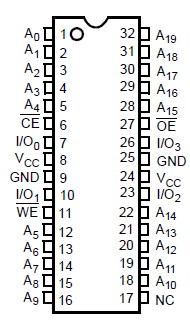

CY7C1046B Connection Diagram
