Features: •Pin compatible and functionally equivalent to ZBT™ devices •Internally self-timed output buffer control to eliminate the need to use OE•Byte Write capability•128K x 36 common I/O architecture •Single 3.3V power supply•2.5V/3.3V I/O OperationR...
CY7C1350F: Features: •Pin compatible and functionally equivalent to ZBT™ devices •Internally self-timed output buffer control to eliminate the need to use OE•Byte Write capability•...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
(Above which the useful life may be impaired. For user guide-lines, not tested.)
Storage Temperature ..............................................................−65°C to +150°C
Ambient Temperature with
Power Applied...........................................................................−55°C to +125°C
Supply Voltage on VDD Relative to GND........................................−0.5V to +4.6V
DC Voltage Applied to Outputs
in Three-State....................................................................−0.5V to VDDQ + 0.5V
DC Input Voltage..................................................................−0.5V to VDD + 0.5V
Current into Outputs (LOW)........................................................................20 mA
Static Discharge Voltage....................................................................... ...>2001V
(per MIL-STD-883, Method 3015)
Latch-Up Current.................................................................................... >200 mA

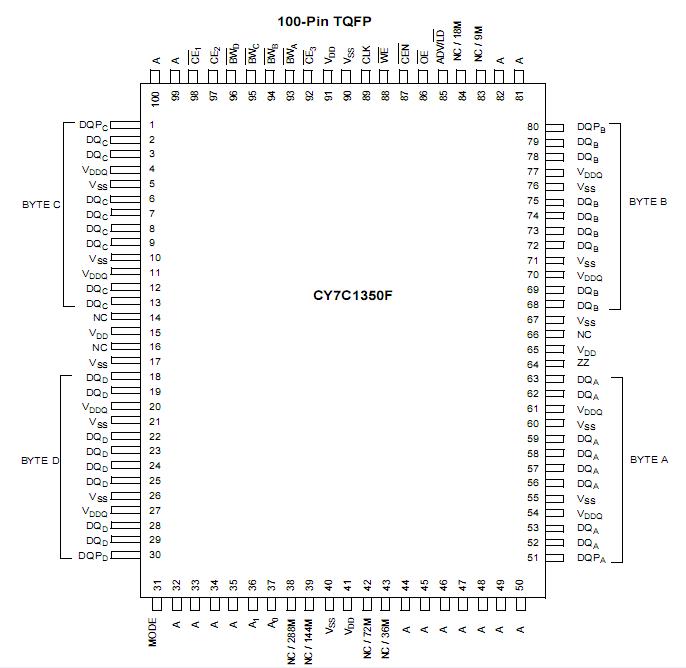

The CY7C1350F is a 3.3V, 128K x 36 synchronous-pipelinedBurst SRAM designed specifically to support unlimited trueback-to-back Read/Write oper
ations without the insertion ofwait states. The CY7C1350F is equipped with the advancedNo Bus Latency™ (NoBL™) logic required to enable consec-
utive Read/Write operations with data being transferred onevery clock cycle. This feature dramatically improves thethroughput of the SRAM, especi
ally in systems that requirefrequent Write/Read transitions.
All synchronous inputs of CY7C1350F pass through input registers controlledby the rising edge of the clock. All data outputs pass throughoutput registers controlled by the rising edge of the clock. Theclock input of CY7C1350F is qualified by the Clock Enable (CEN) signal,which, when deasserted, suspends operation and extends theprevious clock cycle. Maximum access delay from the clockrise is 2.8 ns (200-MHz device)
Write operations of CY7C1350F are controlled by the four Byte Write Select(BW[A:D]) and a Write Enable (WE) input. All writes areconducted with on-chip synchronous self-timed write circuitry.
Three synchronous Chip Enables (CE1, CE2, CE3) and anasynchronous Output Enable (OE)CY7C1350F provide for easy bankselection and output three-state control. In order to avoid buscontention, the output drivers CY7C1350F are synchronously three-statedduring the data portion of a write sequence.
