Part Number: CY7C199CL-15VC
Package Cooled: FAST
Description: The CY7C199C is a highperformance CMOS Asynchronous SRAM organized as 32K by 8 bits that supports an a...
- Table of contents:
CY7C199CL-15VC
-
Suppliers
DataSheet
General Description
CY7C199CL-15VC General Description
The CY7C199C is a highperformance CMOS Asynchronous SRAM organized as 32K by 8 bits that supports an asynchronous memory interface. The device features an automatic powerdown feature that significantly reduces power consumption when deselected.
See the Truth Table in this datasheet for a complete description of read and write modes.
The CY7C199C is available in 28 DIP, 28 SOJ, and 28 TSOP I package(s).
CY7C199CL-15VC Maximum Ratings
| Parameter | Description | Value | Unit |
| TSTG | Storage Temperature | 65 to +150 | °C |
| TAMB | Ambient Temperature with Power Applied (i.e. case temperature | 55 to +125 | °C |
| VCC | Core Supply Voltage Relative to VSS | 0.5 to +7.0 | V |
| VIN,IOUT | DC Voltage Applied to any Pin Relative to VSS | 0.5 to VCC + 0.5 | V |
| IOUT | Output Short-Circuit Current | 20 | mA |
| VESD | Static Discharge Voltage (per MIL-STD-883, Method 3015) | > 2001 | V |
| ILU | Latch-up Current | > 200 | mA |
CY7C199CL-15VC Features
• Fast access time: 12 ns, 15 ns, 20 ns, and 25 ns
• Wide voltage range: 5.0V ± 10% (4.5V to 5.5V)
• CMOS for optimum speed/power
• TTLcompatible Inputs and Outputs
• Available in 28 DIP, 28 SOJ, and 28 TSOP I.
• 2.0V Data Retention
• Low CMOS standby power
• Automated Powerdown when deselected
• Wide voltage range: 5.0V ± 10% (4.5V to 5.5V)
• CMOS for optimum speed/power
• TTLcompatible Inputs and Outputs
• Available in 28 DIP, 28 SOJ, and 28 TSOP I.
• 2.0V Data Retention
• Low CMOS standby power
• Automated Powerdown when deselected

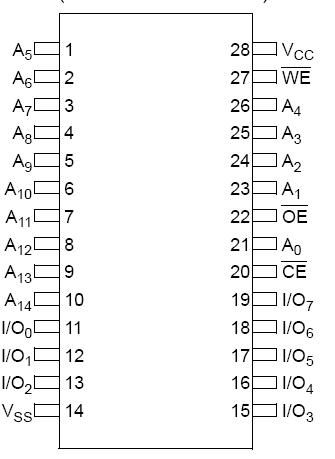

CY7C199CL-15VC Connection Diagram
CY7C199CL-15VC
