CY7C372i General Description
CY7C372i Maximum Ratings
(Above which the useful life may be impaired. For user guidelines,
not tested.)
Storage Temperature ................................. 65 to +150
Ambient Temperature with
Power Applied.............................................. 55 to +125
Supply Voltage to Ground Potential................0.5V to +7.0V
DC Voltage Applied to Outputs
in High Z State................................................0.5V to +7.0V
DC Input Voltage ...........................................0.5V to +7.0V
DC Program Voltage...................................................... 12.5V
Output Current into Outputs ....................................... 16 mA
Static Discharge Voltage ........................................... >2001V
(per MILSTD883, Method 3015)
Latch-Up Current..................................................... >200 mA
CY7C372i Features
• 64 macrocells in four logic blocks
• 32 I/O pins
• 5 dedicated inputs including 2 clock pins
• In-System Reprogrammable (ISR™) Flash technology
-JTAG interface
• Bus Hold capabilities on all I/Os and dedicated inputs
• No hidden delays
• High speed
-fMAX = 125 MHz
-tPD = 10 ns
-tS = 5.5 ns
-tCO = 6.5 ns
• Fully PCI compliant
• 3.3V or 5.0V I/O operation
• Available in 44-pin PLCC, TQFP, and CLCC packages
• Pin compatible with the CY7C371i

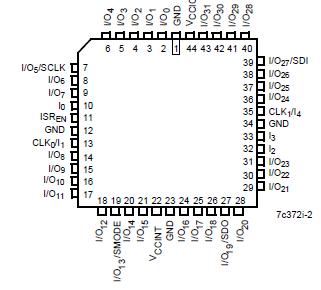

CY7C372i Connection Diagram
