Features:

• Complies with USB-IF specifications for USB 2.0, the USB Mass Storage Class, and the USB Mass Storage Class Bulk-Only Transport Specification
• Operates at high (480-Mbps) or full (12-Mbps) speed
• Complies with T13's ATA/ATAPI-6 Draft Specification
• Supports 48-bit addressing for large hard drives
• Supports PIO modes 0, 3, 4, and UDMA modes 2, 4
• Uses one external serial EEPROM containing the USB device serial number, vendor and product identification data,and device configuration data
• ATA interface IRQ signal support
• Support for ATA/ATAPI devices configured either as master or slave
• "ATA-Enable" input signal, which three-states all signals on the ATA interface in order to allow sharing of the bus with another controller (e.g., an IEEE-1394 to ATA bridge chip)
• Support for board-level manufacturing test via USB interface
• 3.3V operation for self-powered devices
• 56-pin SSOP and 56-pin QFN packages.


Pinout

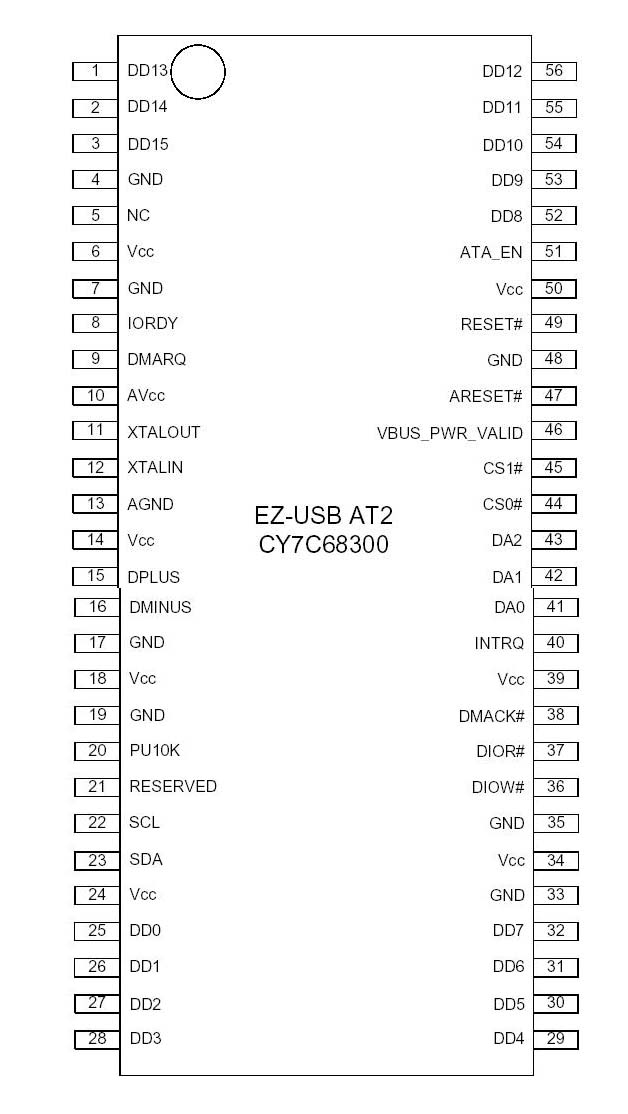

Connection Diagram


Specifications

Storage Temperature .....................................................................................................65°C to +150°C
Ambient Temperature with power supplied........................................................................0°C to +55.4°C
Supply Voltage to Ground Potential ....................................................................................0.5V to +4.0V
DC Input Voltage to Any Input Pin .................................................................................................... 5.25V
DC Voltage Applied to Outputs in High-Z State ........................................................> 0.5V to VCC + 0.5V
Power Dissipation .......................................................................................................................> 936 mW
Static Discharge Voltage....................................................................................................................2000V
Max Output Current per IO port ........................................................................................................10 mA


Description

The CY7C68300   EZ-USB AT2 is a high-speed USB 2.0 peripheral device that connects ATA or ATAPI storage devices to a USB host using the USB Mass Storage Class protocol.
